Seat Heating Element, Removing and Installing (Standard Seat)

Seat Heating Element, Removing And Installing (standard Seat)

Removing
- Remove seat: Vehicles until 10.04, vehicles from 11.04.
- Remove backrest: Vehicles until 10.04, vehicles from 11.04.
- Remove cover and padding from seat pan.







- Cut wire - 2 - off of old heating element - 1 -.

Installing

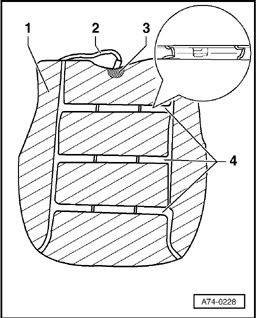

- Align heating element - 1 - on seat surface, remove protective foil and glue heating element to cushion.
- Slide electrical wire - 2 - into openings - 3 -.
- Lay wire connections without crossing into bottom of openings at positions - 4 -.
