01X, 6 SPD. M/T FWD

Transmission oil level, checking, 01X, 6 Spd. M/T FWD

Special tools, testers and auxiliary items required

Torque wrench V.A.G.1331:

Procedure

Note:

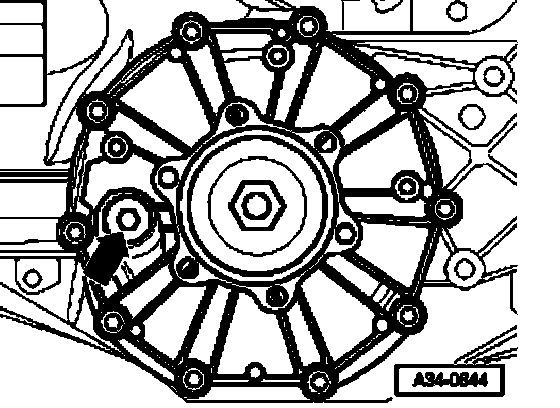

^ The vehicle must be horizontal when checking gear oil level. -To check gear oil level, remove oil filler plug - arrow -.





- Oil level is correct when transmission is filled up to edge of housing - arrow -.
- Top off with gear oil if necessary.
- Install oil filler plug and tighten.





Note the following when filling with new oil:
- Remove oil filler plug - arrow -.





- Fill with gear oil up to edge of housing - arrow -.
- Install oil filler plug.
- Start engine, engage a gear and allow transmission to turn for approximately 2 minutes.
- Switch off engine and remove oil filler plug.
Once more, fill with gear oil up to edge of housing - arrow -.
- Screw in oil filler plug and tighten.

Tightening Torque:
