Layout

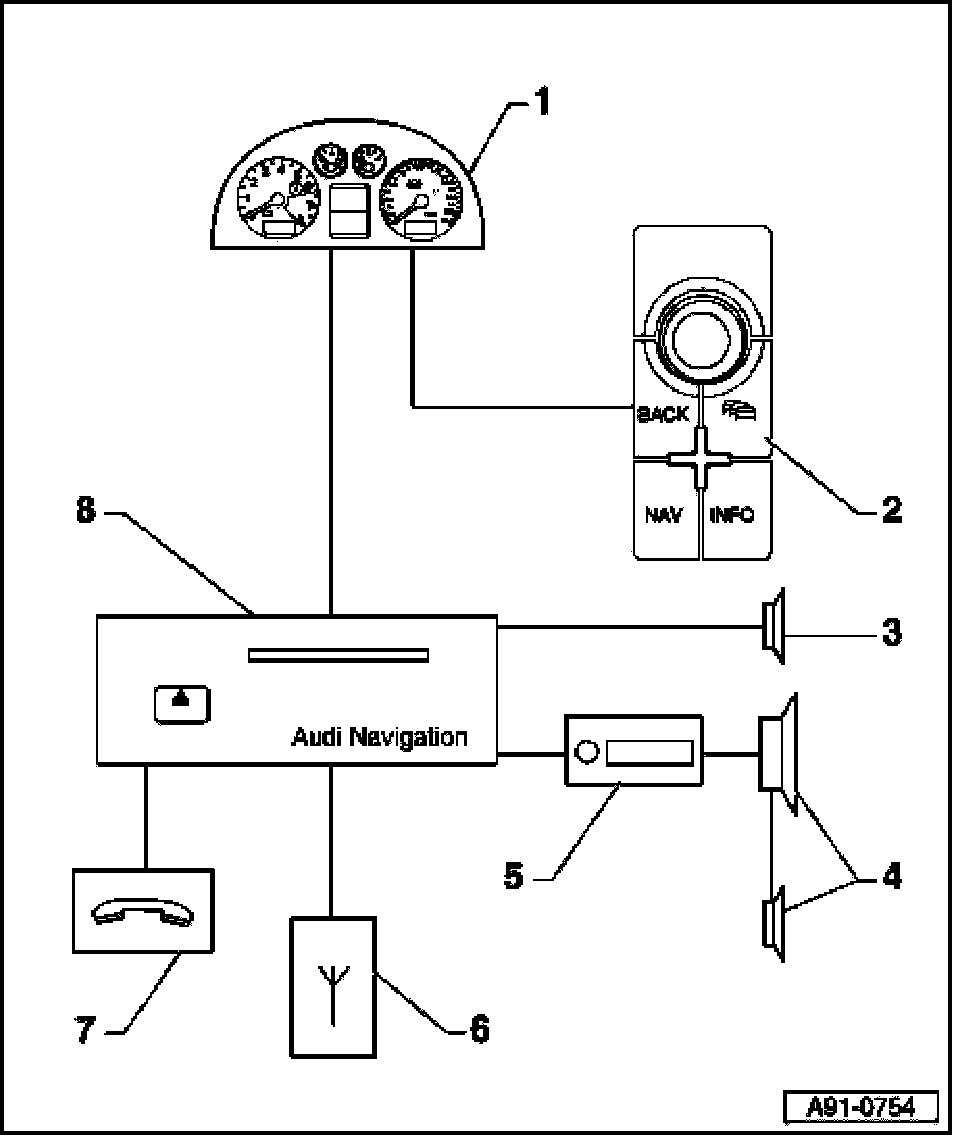

Navigation System - "Navigation IV", Layout







1. Instrument cluster
2. Function Selector Switch II E272 )
- In center console

3. Not applicable to US/CDN
4. Radio system loudspeakers
5. Radio R
6. Navigation System Antenna R50
7. Not applicable to US/CDN
8. Navigation System with CD Drive Control Module J401
- Behind left luggage compartment trim
