Satellite Radio Systems

Satellite Radio R146 - Sedan, Removing And Installing

NOTE: Should the satellite radio unit require replacement, follow applicable component "Replacement" procedure using VAS 5051/5051 in operating mode "Guided Fault Finding"

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing:
- Remove sub compartment behind left luggage compartment trim.

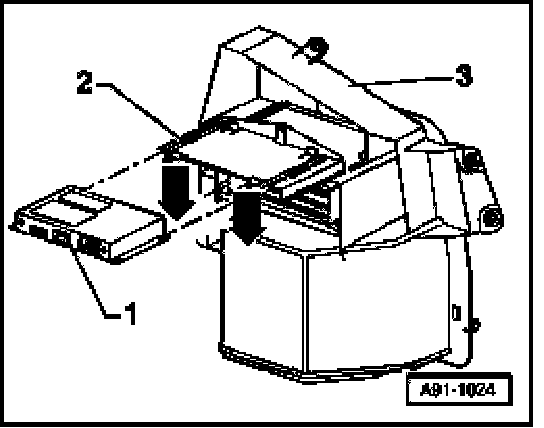

Satellite Radio - 1 - slides/locks into adapter plate - 2 - mounted to rear of sub compartment - 3 -.

- Disconnect electrical connections at satellite radio.
Adapter plate does not need to be removed.
- Depress both locking catches on adapter plate - 2 - in direction of - arrows -.
- Slide out and remove satellite radio - 1 - from adapter plate - 2 -.

Installing:
- Install in reverse order of removal.
- Activate Satellite Radio R146.
