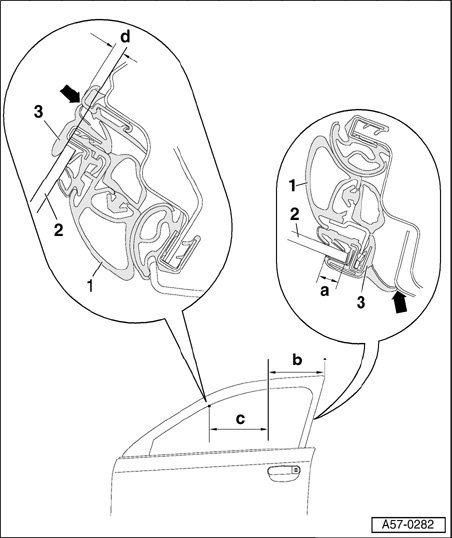

Adjustment Dimensions For Front Door Window Frame

Adjustment Dimensions For Front Door Window Frame







1 - Window frame
- For correct door adjustment, sealing lip must make clean contact to contours at roof frame and at B-pillar, see - arrows -.
2 - Window
- Adjust door until the result is dimension - d - = 4 mm in area - c - = 365 mm.
- Dimension - d - can be checked further using door adjusting template T40038.
- Dimension - b - of rear door edge starting at B-pillar = 200 mm.
3 - Window frame
- Door window - 2 - must drive as far as dimension - a - = 7.5 mm(-1 mm) into window frame at B-pillar.
