Dashboard / Instrument Panel: Locations

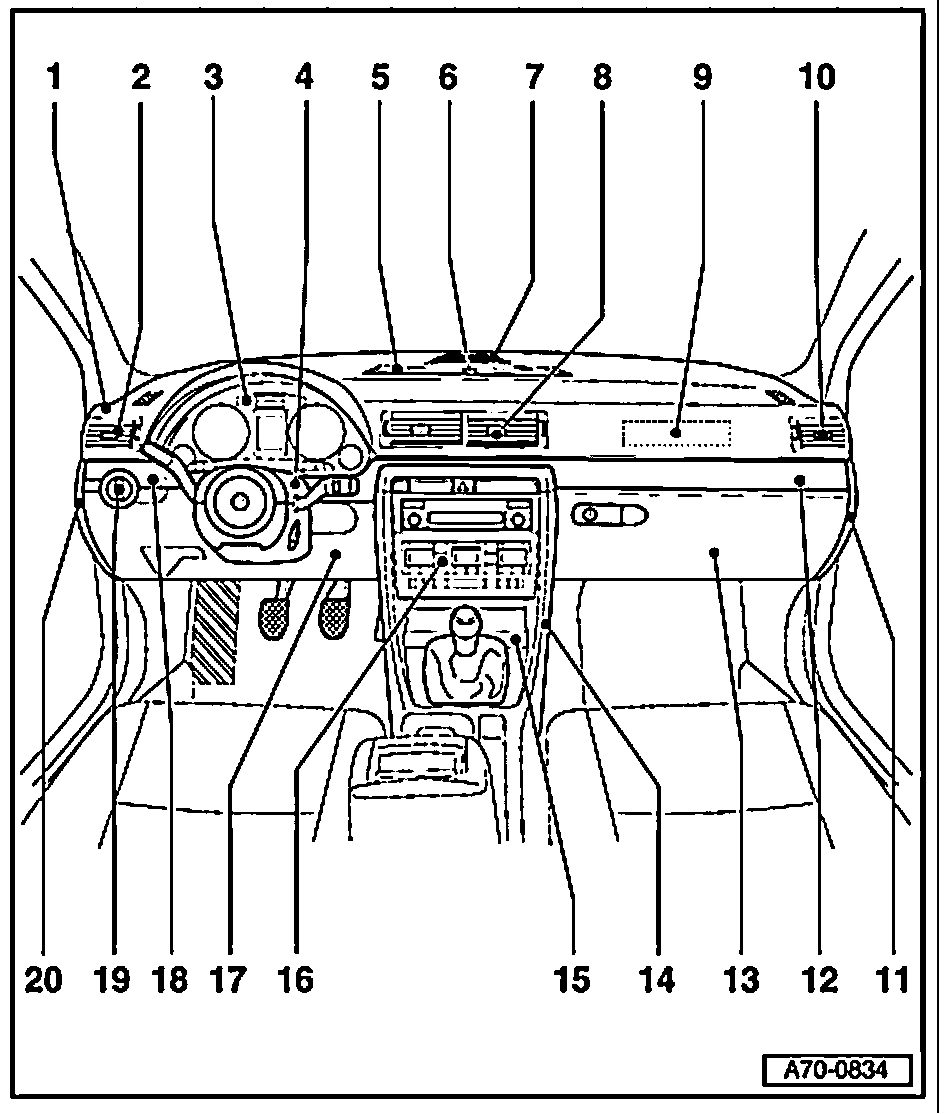

Component Locations, Overview







1. Remove instrument panel

CAUTION: Note the allocation of the airbag unit to the instrument panel.

2. Removing left instrument panel vent
3. Removing instrument cluster
4. Removing upper trim for steering column switches
5. Removing center defroster outlet
6. Removing photo sensor
7. Removing instrument panel speaker
8. Removing center instrument panel vent
9. Removing passenger-side airbag unit
10. Removing right instrument panel vent
11. Removing right instrument panel cover
12. Removing right trim for instrument panel
13. Removing glove compartment
14. Removing center console.
15. Removing front ashtray
16. Removing center instrument panel
17. Removing storage compartment on drivers side
18. Removing left trim for instrument panel
19. Remove light switch and headlight beam adjuster
20. Remove left instrument panel cover
