Rearview Mirror, Removing (Automatic-Dimming Mirror, Rearview Mirror With Compass)

Rearview Mirror, Removing (Automatic-dimming Mirror, Rearview Mirror With Compass)

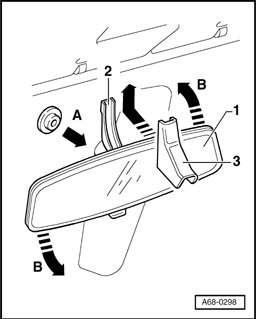

Removal:







- Unclip cable channel cover - 3 -.
- Remove connector from retainer and disconnect.

NOTE: The cable channel - 2 - should not be used for rotating.

- When removing, rotate mirror - 1 - 60 to 90 degrees - B arrows - until retaining spring disengages and remove mirror - arrow A -.

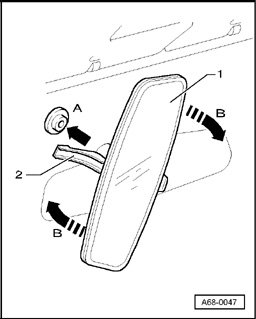

Installing:

NOTE: The cable channel - 2 - should not be used for rotating.







- Install mirror - 1 - at a 60 to 90 degrees offset to installation position - arrow A - and turn - arrows B - until retaining spring engages.
