"Up to 10/2004"

Airbag Adapter VAS 6036 , Connecting

Special tools, testers and auxiliary items required







- Airbag adapter VAS 6036







- Vehicle Diagnosis, Testing and Information System VAS 5051 A

CAUTION:
- Technician must be grounded before disconnecting ignition and ground wiring, touching door striker or body.
- The Airbag Adapter VAS 6036 must stay connected to seat until seat is installed again.

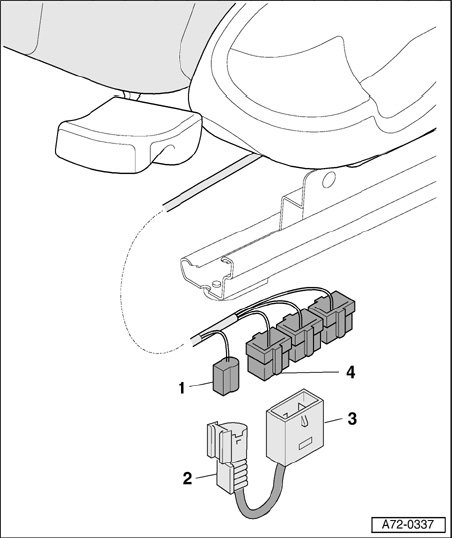

1 - Airbag connector (yellow)
- Connect airbag connector (yellow) - 1 - to airbag adapter connector - 2 -.
If present:
- Connect connector for voltage supply (red) of airbag adapter - 3 - to counterpart (red) - 4 - on seat connector.
2 - Airbag adapter connector (yellow)
3 - Voltage supply connector of airbag adapter (red)
4 - Seat connector voltage supply connector (red)
