Rear Seat Rail Covers, Removing and Installing

Rear Seat Rail Covers, Removing And Installing

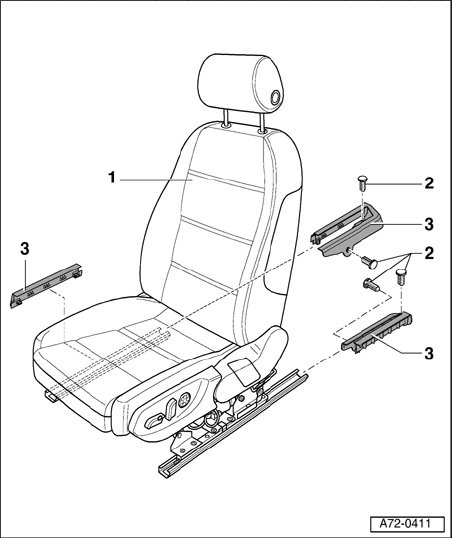

1 - Front seat
2 - Securing clips (Qty. 4)
3 - Seat rail covers (Qty. 3)

- Removal:
- Move front seat - 1 - fully to the front.
- Remove securing clips - 2 - (4x).
- Remove seat rail covers - 3 - (3x).

- Installing:
Installation is reverse of removal.
