Diagram 36/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


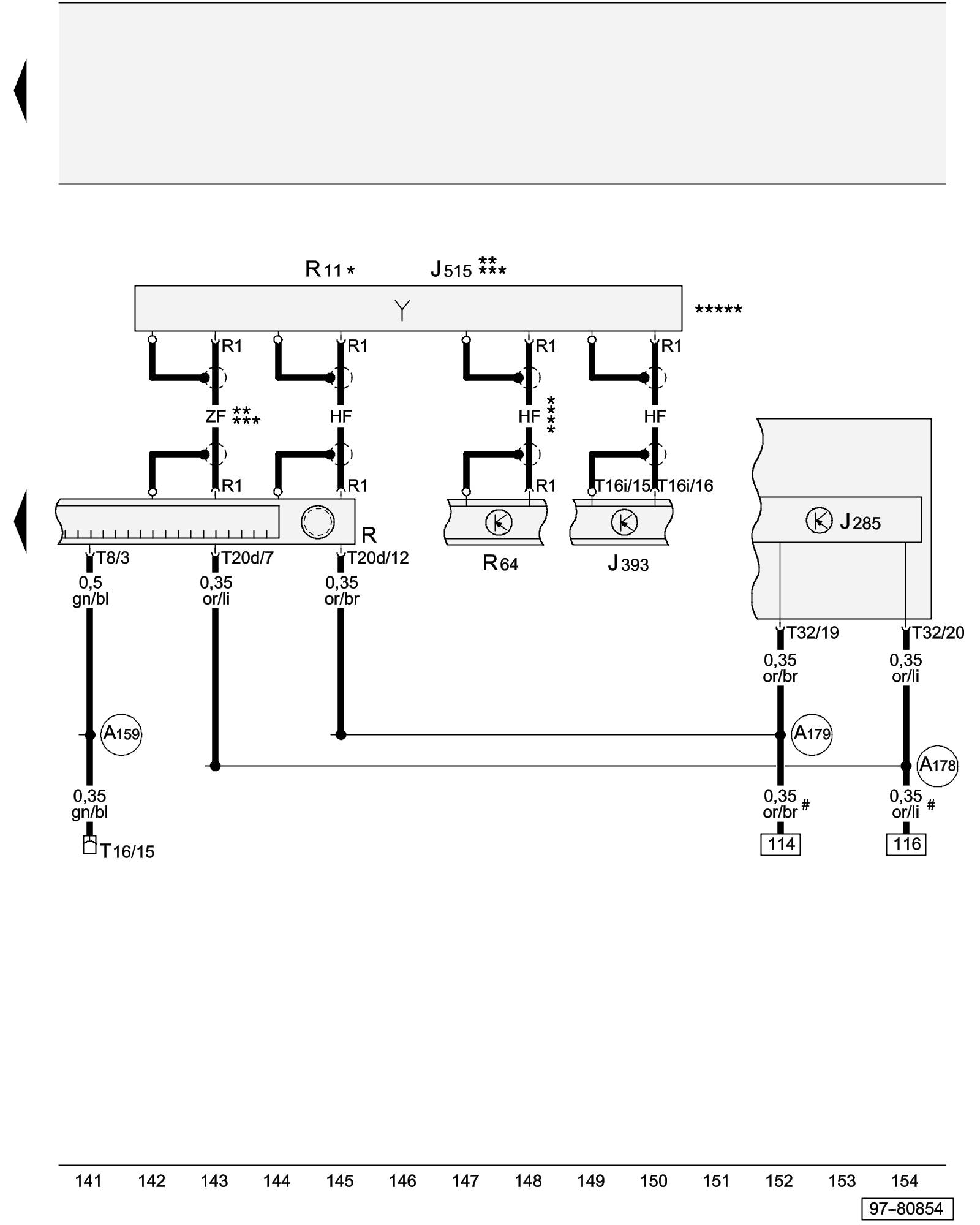

Antenna Sedan, diagnostic connection, CAN-Bus





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Control module with indicator unit in instrument panel insert

J393 - Comfort System Central Control Module Convenience System Overview

J515 - Antenna Selection Control Module

R - Radio

R1 - Antenna Connection

R11 - Antenna Telephone System - Avant

R64 - Auxiliary Heater Radio Receiver

T8 - 8-Pin Connector, black, radio connector III

T16 - 16-Pin Connector, black, diagnostic connection

T16i - 16-Pin Connector, brown, on central control module for comfort system (used to be Connector 5)

T20d - 20-Pin Connector, black, radio connector I

T32 - 32-Pin Connector, blue, on instrument panel insert

(A159) - Wire connection (L), in instrument panel wiring harness

(A178) - Infotainment High-bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

* - with Radio chorus only

** - with Radio concert or symphony only

*** - with Radio chorus only, from 2004 m. y.

**** - not applicable to US/CDN

***** - Antenna for Sedan

# - with Satellite Radio only

Previous Diagram 36/11 (Tracks 127-140)
