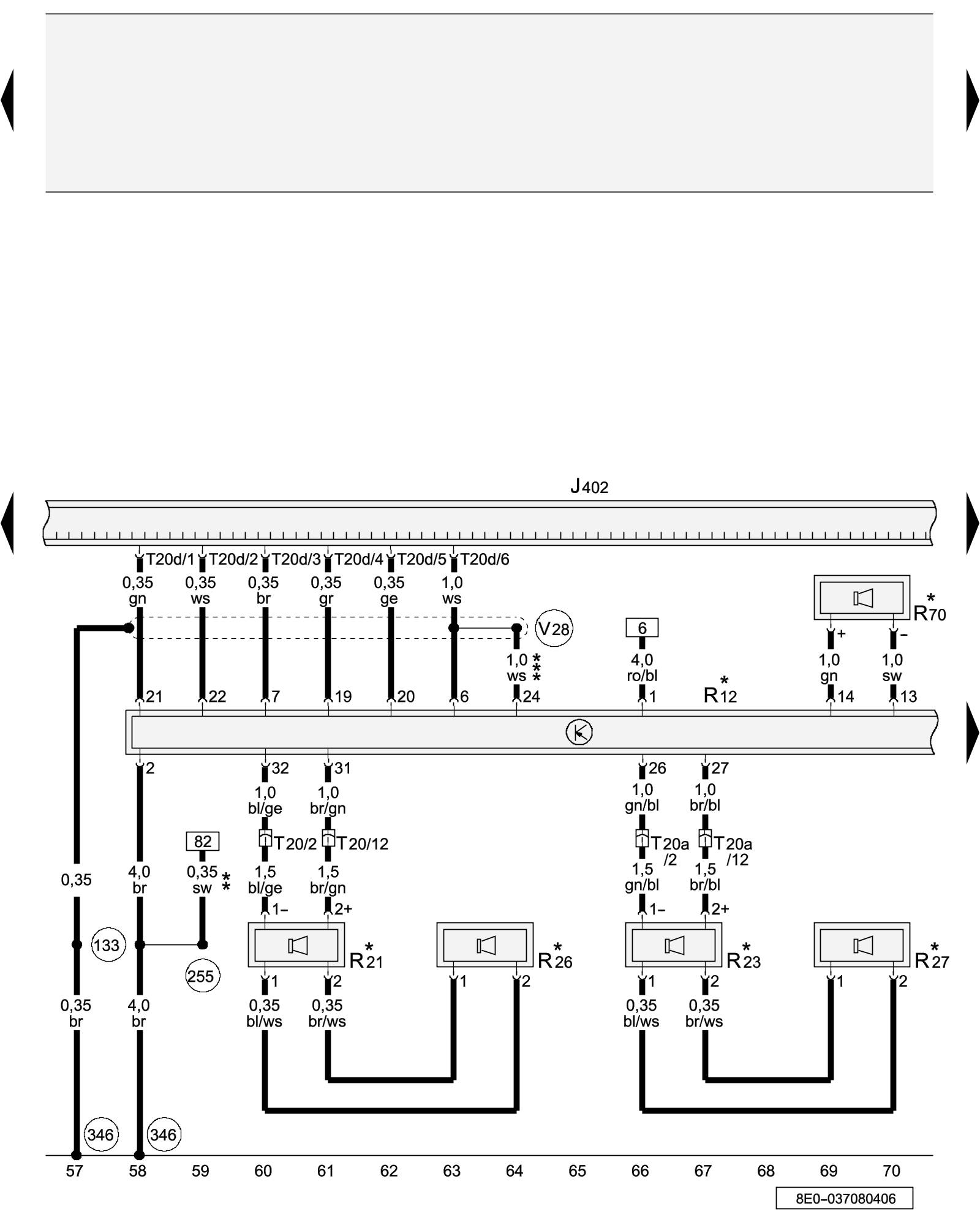

Diagram 59/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Bose Speaker front





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J402 - Control module for operating electronics, navigation

R12 - Amplifier

R21 - Bass speaker, left front

R23 - Bass speaker, right front

R26 - Left Front Midrange Speaker

R27 - Right Front Midrange Speaker

R70 - Inside loudspeaker (Center Speaker)

T20 - 20-Pin Connector, black, door A-pillar, left

T20a - 20-Pin Connector, black, door A-pillar, right

T20d - 20-Pin Connector, black, radio connector I

(133) - Ground connection, in speaker wiring harness

(255) - Ground connection, -1-, in wiring harness Radio

(346) - Ground connection (Audio), in instrument panel wiring harness

(V28) - Connector -1-, in radio wiring harness

* - with Bose Speaker only

** - from November 2003

*** - up to October 2003
