Diagram 9/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

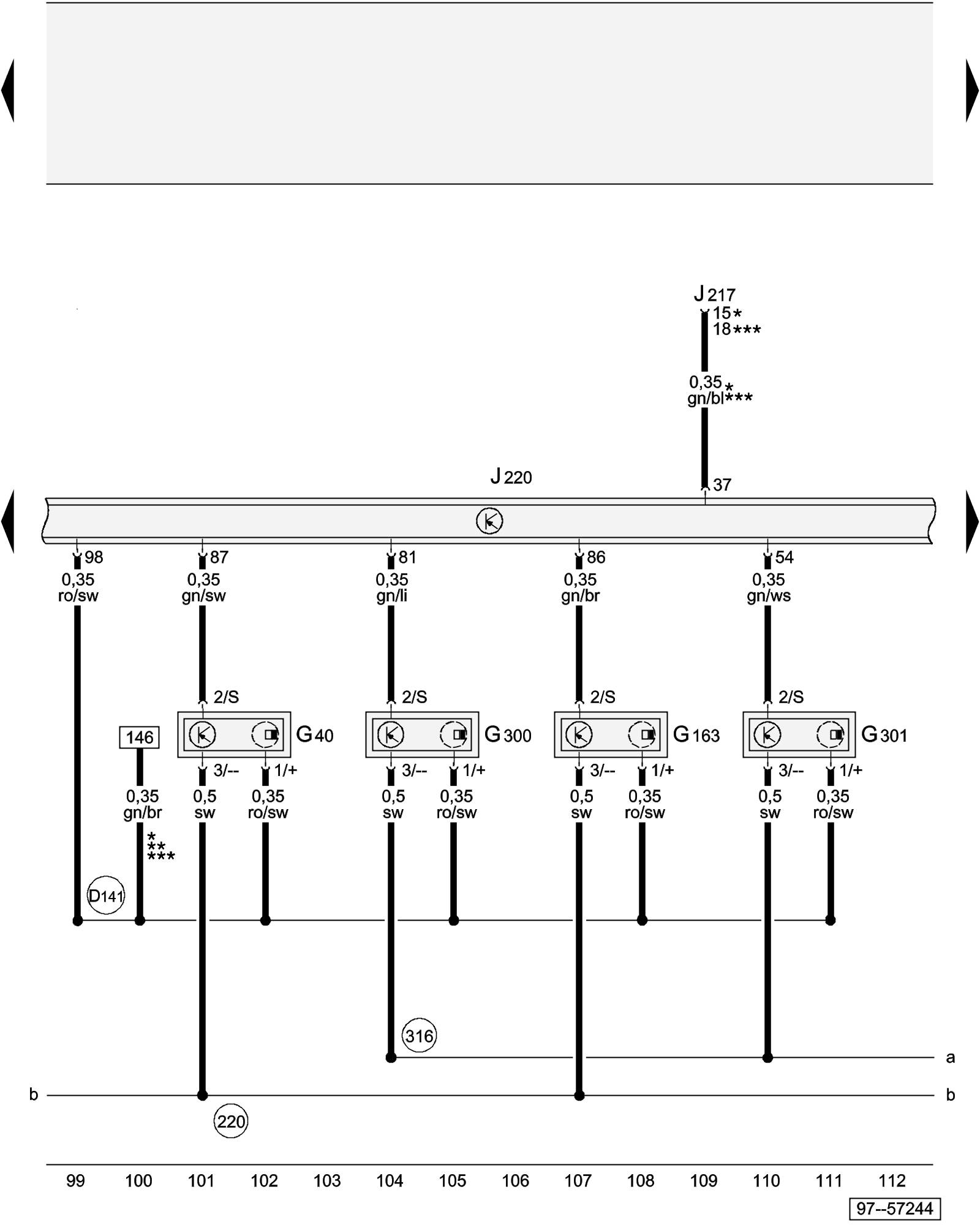

Motronic Engine Control Module, Camshaft Position (CMP) Sensors





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft Position (CMP) Sensor Locations

G163 - Camshaft Position (CMP) Sensor 2 Locations

G300 - Camshaft Position (CMP) Sensor 3 Locations

G301 - Camshaft Position (CMP) Sensor 4 Locations

J220 - Motronic Engine Control Module (ECM)

J217 - Transmission Control Module (TCM)

(220) - Ground connection (sensor Ground), in engine wiring harness

(316) - Ground connection (sensor Ground -2-), in engine wiring harness

(D141) - Connection (5V), in wiring harness engine pre-wiring

* - Automatic transmission (multitronic 01J) only, up to 2003 m. y.

** - Automatic transmission (AG5) only

*** - Automatic transmission (multitronic 01J) only, from 2004 m. y.

Previous Diagram 9/8 (Tracks 85-98)

Next Diagram 9/10 (Tracks 113-126)
