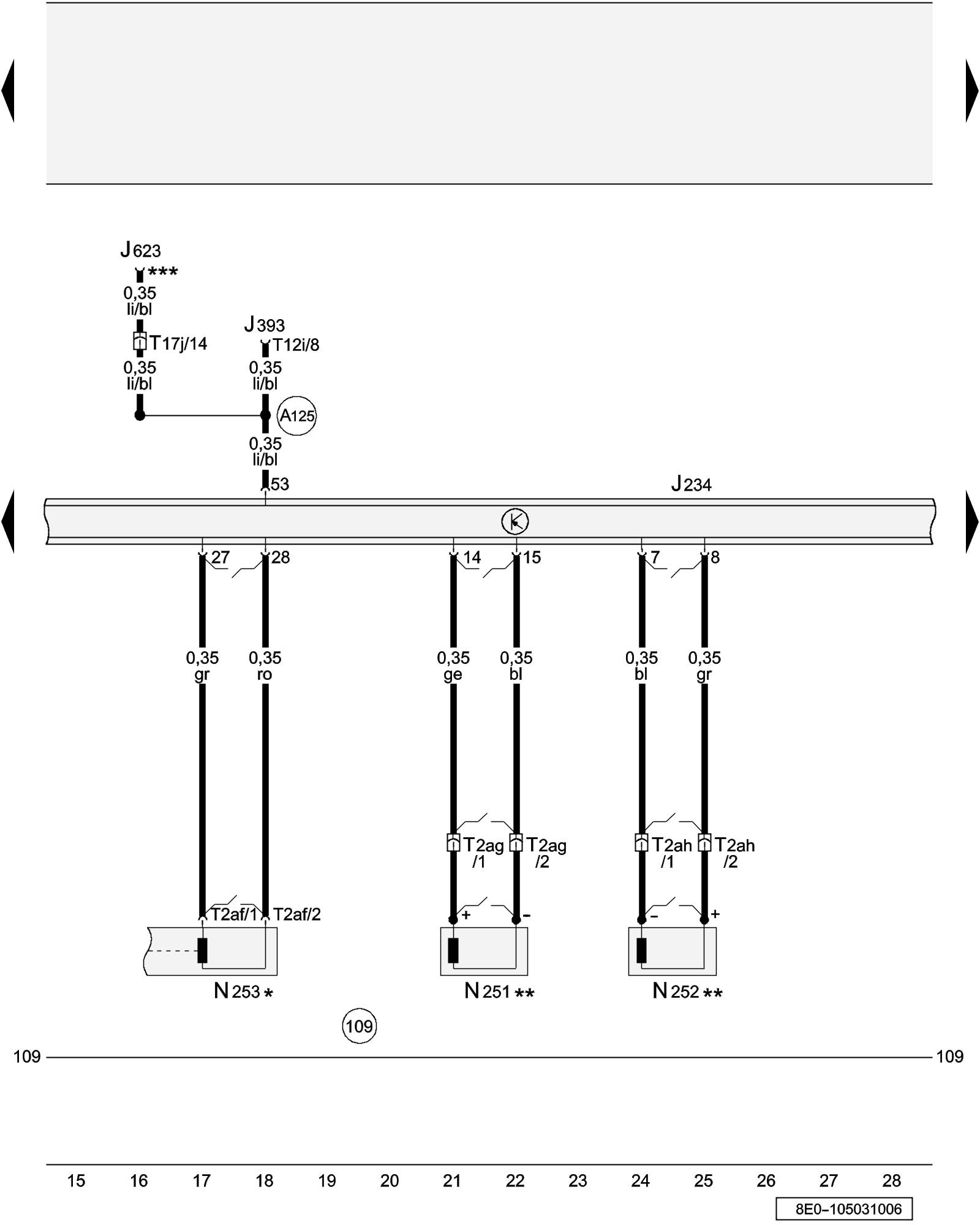

Diagram 105/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Head Curtain Airbag Igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag Control Module

J393 - Comfort System Central Control Module Convenience System Overview

J623 - Engine Control Module (ECM) Locations

N251 - Driver's Head Curtain Airbag Igniter Airbag Component Location

N252 - Front Passenger's Head Curtain Airbag Igniter Airbag Component Location

N253 - Battery Interrupt Igniter Airbag Component Location

T2af - Double Connector, purple, on battery interrupt igniter

T2ag - Double Connector, yellow, connector station interior, headliner, front left

T2ah - Double Connector, yellow, connector station interior, headliner, front right

T12i - 12-Pin Connector, black, on central control module for comfort system

T17j - 17-Pin Connector, brown, connector station E-box, plenum chamber

(109) - Ground Connection (in airbag wiring harness)

(A125) - Crash Signal Connection (in instrument panel wiring harness)

* - for engine code BNS only, => Current wiring diagram for engine

** - with head curtain airbag only

*** - => Current wiring diagram for engine

- Short circuit bridge becomes effective when connector is unplugged
