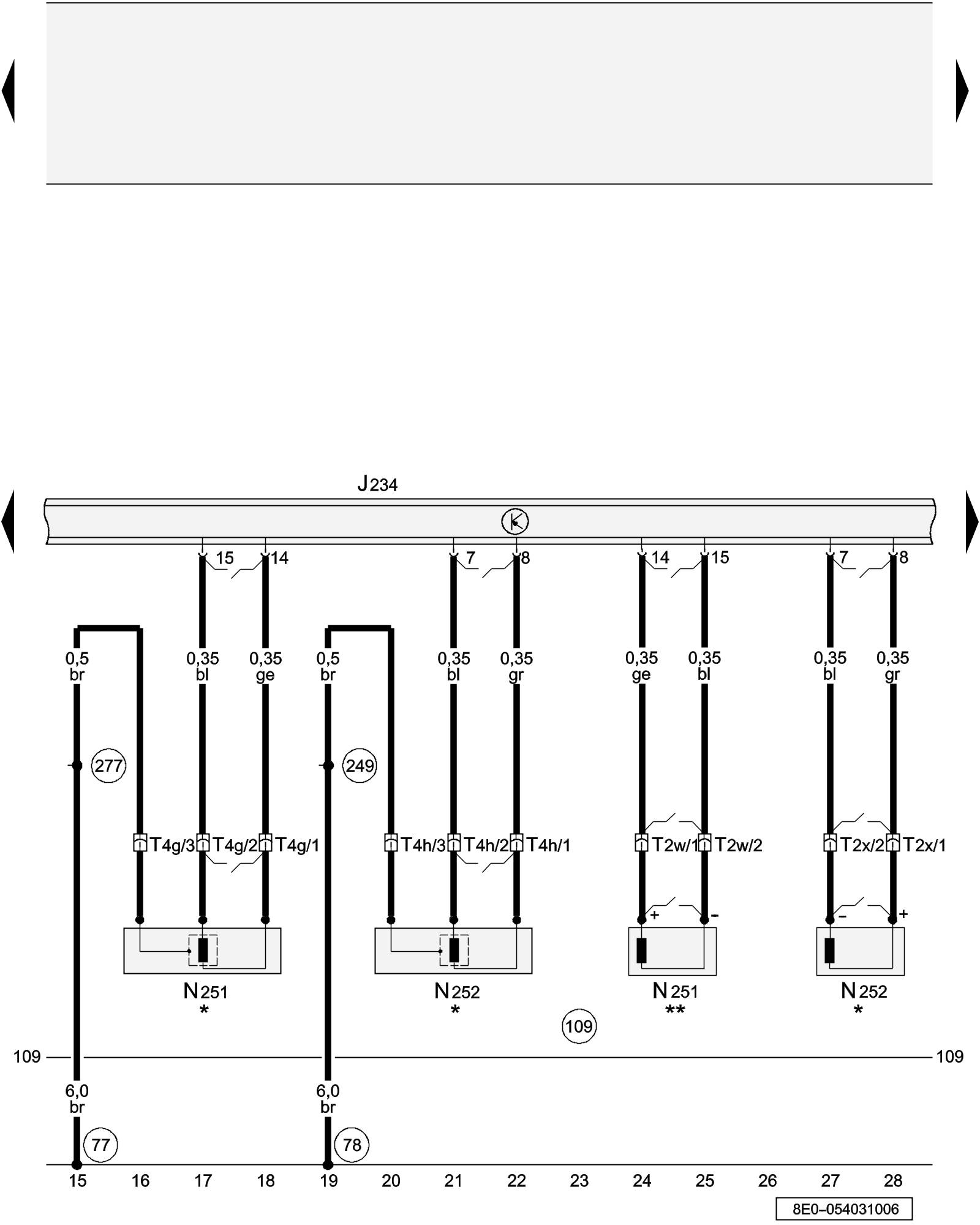

Diagram 54/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver and Front Passenger Head Curtain Airbags





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag Control Module

N251 - Driver's Head Curtain Airbag Igniter Airbag Component Location

N252 - Front Passenger's Head Curtain Airbag Igniter Airbag Component Location

T2w - 2-Pin Connector, lilac, connector station interior, headliner, front left

T2x - 2-Pin Connector, lilac, connector station interior, headliner, front right

T4g - 4-Pin Connector, yellow, connector station: interior, headliner, front left

T4h - 4-Pin Connector, yellow, connector station: interior, headliner, front right

(77) - Ground Connection (on left lower B-pillar) Component Locations Overview in Passenger Compartment

(78) - Ground Connection (on right lower B-pillar) Component Locations Overview in Passenger Compartment

(109) - Ground Connection (in airbag wiring harness)

(249) - Ground connection -2-, in wiring harness interior

(277) - Ground connector -3-, in wiring harness interior

* - Sedan

** - Avant

- Short circuit bridge becomes effective when connector is unplugged
