Component Locations of Individual Control Units

Component locations of individual control units

Engine compartment







1 - Heated windscreen control unit - J505
• In plenum chamber, right, next to battery






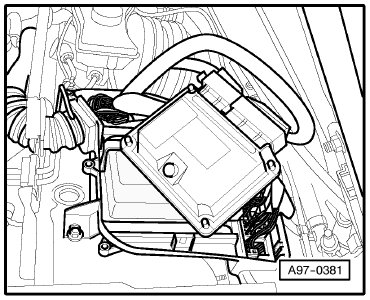

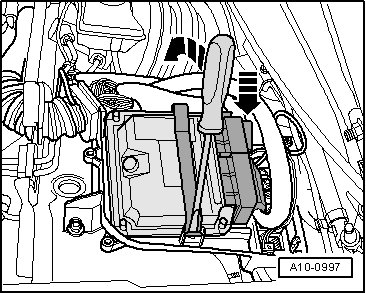

2 - Motronic control unit - J220
• In electronics box, plenum chamber






3 - Transmission Control Module (TCM) - J217
• In electronics box, plenum chamber






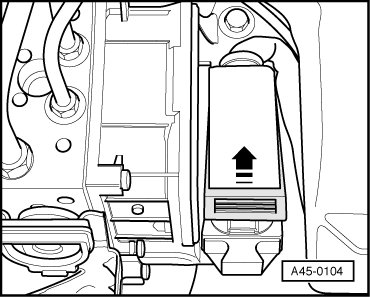

4 - ABS with EDL control unit - J104
• In engine compartment, on hydraulic unit, front left






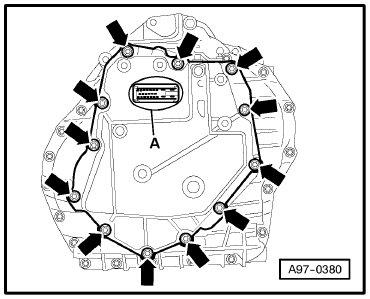

5 - Multitronic control unit - J217
• In gearbox

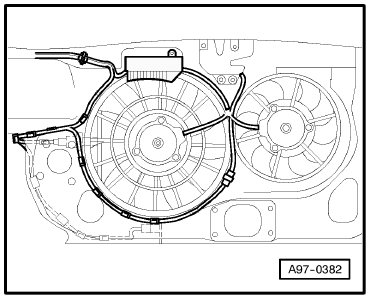

6 - Radiator fan control unit - J293
• On front end, at radiator fan
