Shift Lock Solenoid -N110-, Checking

Shift Lock Solenoid -N110-, checking, 01J CVT A/T FWD

Note: This test must be performed if the specified values in the voltage measurement are not reached.

Additional special tools and equipment

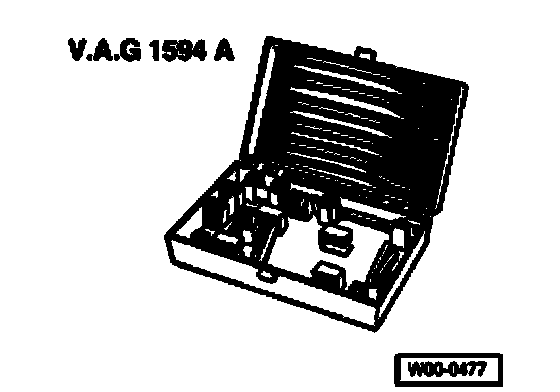

^ Connector test kit V.A.G 1594 A

Test sequence
- Remove cover for shift control mechanism





- Disconnect harness connector at Shift lock solenoid -N110 -A-.
- Attach multimeter for resistance measurement between contacts -B-.
^ Specified value: 22.3 ± 1 Ohms

If the specified value is not reached:
- Replace the shift lock solenoid.
