Fuel Tank, Vehicles With Front Wheel Drive As of 11.04

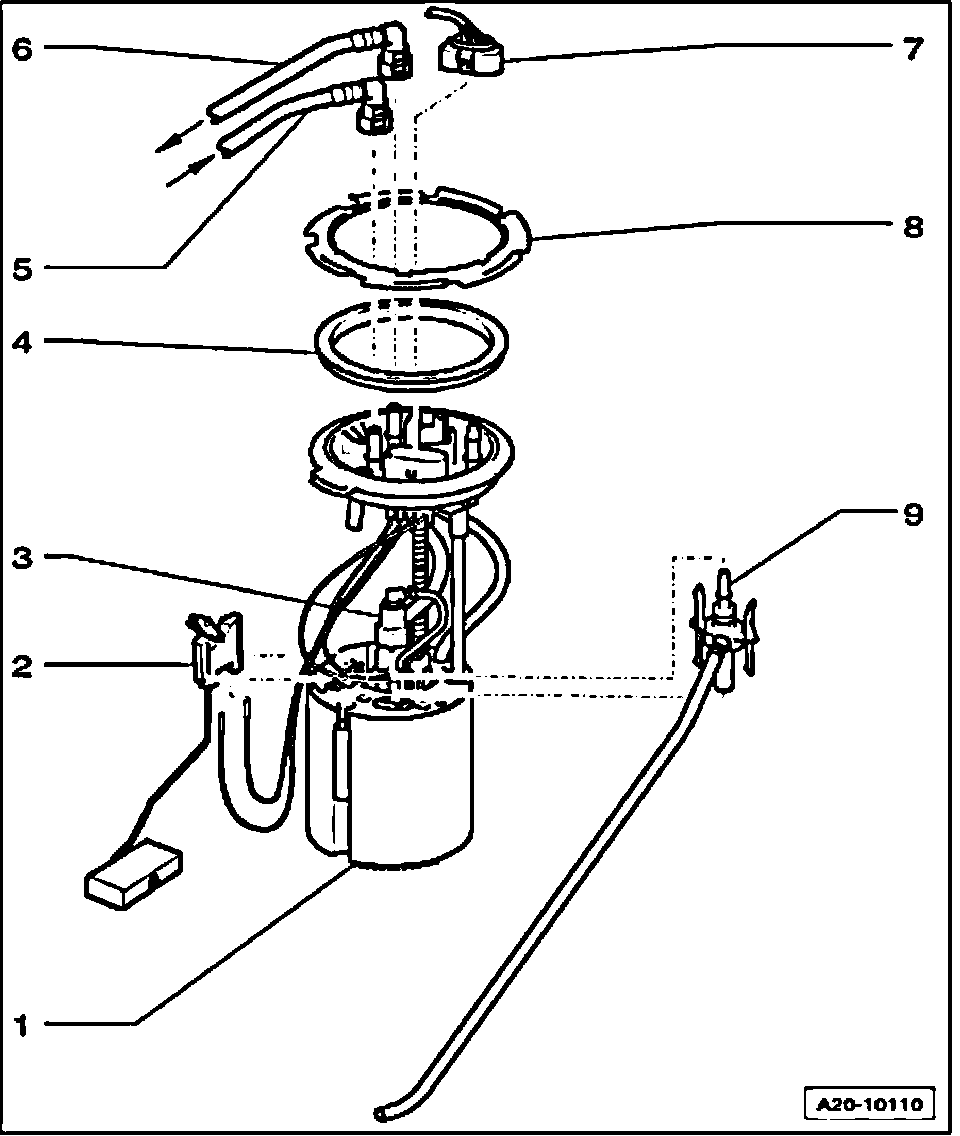

Fuel Delivery Unit And Fuel Level Sensor, Assembly Overview







1. Fuel delivery unit
- Fuel pump electrical, checking
2. Fuel Level Sensor G
- Resistance values, checking
3. Suction jet pipe
- To disconnect, press release button on connection piece
4. Oil seal
- Replace
- Install dry
5. Fuel return line
- From fuel filter
- Mark before removing
- To disconnect, press release button on connection piece
- Do not kink
- Note direction of arrow (fuel supply or return) on locking flange when installing
- Clipped in on fuel tank
6. Fuel supply line
- To fuel filter
- Mark before removing
- To disconnect, press release button on connection piece
- Do not kink
- Note direction of arrow (fuel supply or return) on locking flange when installing
- Clipped in on fuel tank
7. Electrical harness connector
- For Fuel level sensor G
- For Transfer Fuel Pump (FP) G6
8. Locking ring
- Use wrench 3087 to remove and install
- Tighten to 145 Nm
9. Suction jet pump
