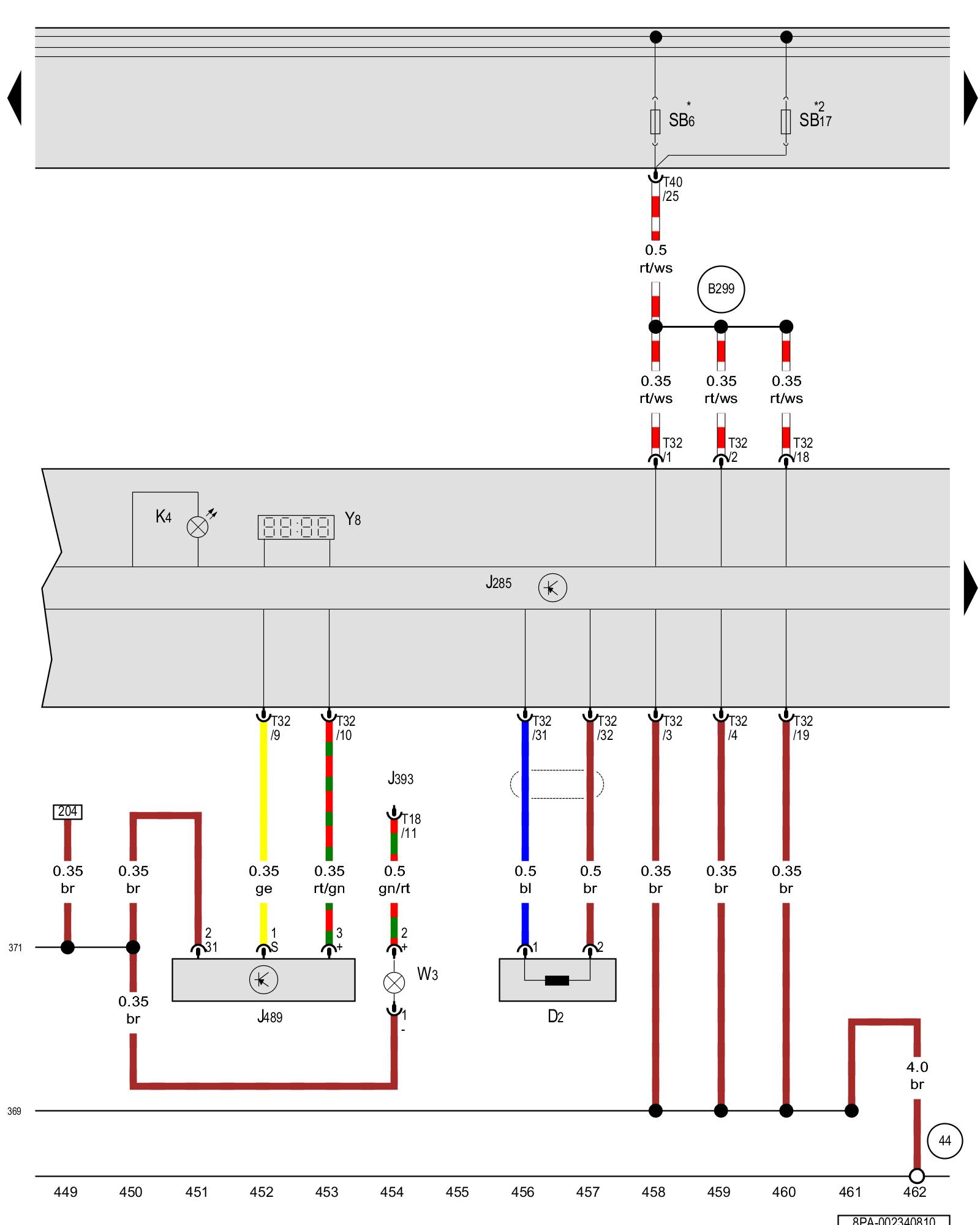

Diagram 2/34 (Tracks 449-462)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Anti-theft immobilizer reader coil, Instrument cluster control module, Radio frequency controlled clock receiver, Luggage compartment lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D2 - Anti-theft immobilizer reader coil

J285 - Instrument cluster control module Control Modules in Interior Of Vehicle

J393 - Comfort system central control module Overview Of Control Modules

J489 - Radio frequency controlled clock receiver

K4 - Parking lamp indicator lamp

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB17 - Fuse 17 (on fuse panel B) Overview Of Fuses

T18 - 18-pin connector

T32 - 32-pin connector

T40 - 40-pin connector

W3 - Luggage compartment lamp

Y8 - Radio frequency controlled clock

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(369) - Ground connection 4 (in main wiring harness)

(371) - Ground connection 6 (in main wiring harness)

(B299) - Positive connection 3 (30) (in main wiring harness)

* - E-Box low

*2 - E-Box high

Previous Diagram 2/33 (Tracks 435-448)

Next Diagram 2/35 (Tracks 463-476)
