Display Group 017
Display Group 017

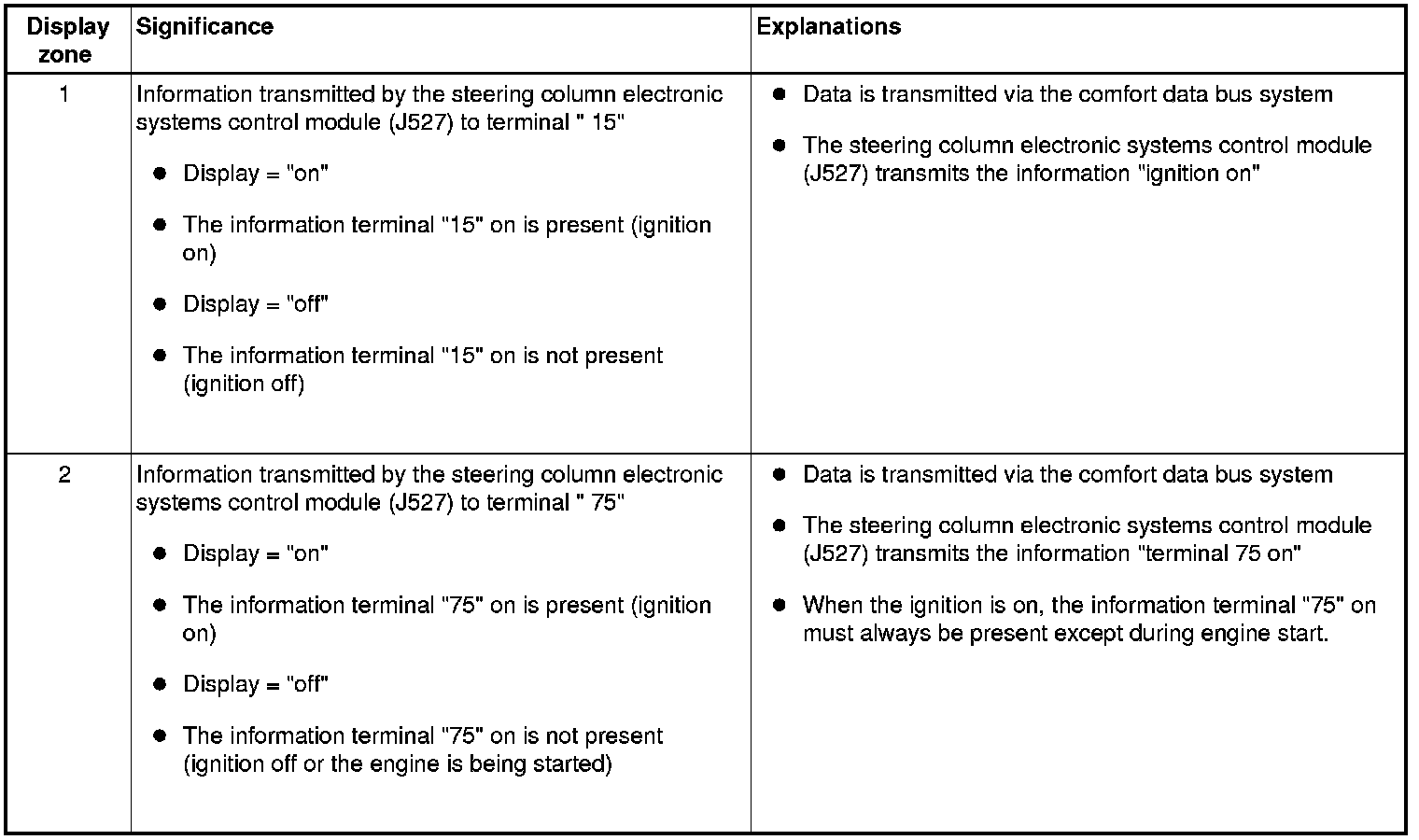

Transmitted or measured status or voltage at terminals " 15", "75", and "30"
