Cellular Telephone Preparation, Layout

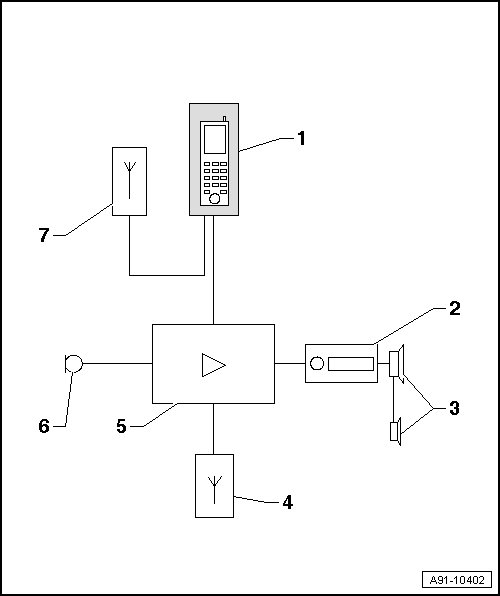

Cellular Telephone Preparation, Layout

1 Telephone Baseplate (R126) with Cellular Telephone (R54) on top of instrument panel/in center armrest

2 Radio (R)/Navigation System with CD Drive Control Module (J401) in top of center console

3 Sound system

4 Bluetooth Antenna (R152) at Telephone Transceiver (R36)

5 Telephone Transceiver (R36) in electronics box under right front seat

6 Telephone Microphone (R38) in Front Interior Light (W1)

7 Radio, Telephone, Navigation System Antenna ( R52) (Ter/Sat/GPS/GSM) roof antenna
