Navigation System II-D Navigation/TV Tuner, Connections
Navigation System II-D Navigation/TV Tuner, Connections
1 TV4 connection (brown) from Antenna Selection Control Module (J515)/Right Antenna Module ( R109)
2 TV3 connection (brown) from Antenna Selection Control Module (J515)/Right Antenna Module ( R109)
3 TV2 connection (green) to Antenna Selection Control Module (J515)/Left Antenna Module (R108)
4 TV1 connection (green) to Antenna Selection Control Module (J515)/Left Antenna Module (R108)
5 Black 54-pin (T54) multi-pin connector to Operating Electronics, Navigation Control Module (J402)
• Unlisted connector terminals are not assigned.

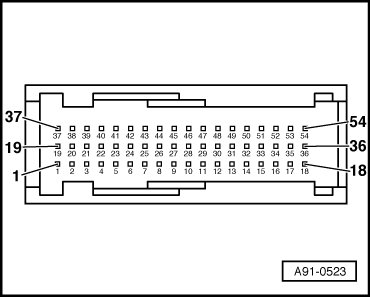

5 - Black 54-pin multi-pin harness connector (T54)
2 CAN BUS Low (BOSCH) from RNS-E (Infotainment)
3 CAN BUS High (BOSCH) from RNS-E (Infotainment)
4 Front audio screen (not used)
5 Right front audio output
6 Audio ground (not used)
7 Left front audio output
8 Audio ground
9 Front screen ground
10 Front video screen
11 Front sync. video output
12 Video ground
13 Front blue audio output
14 Video ground
15 Front green video output
16 Video ground
17 Front red video output
19 Terminal 31
20 Terminal 30
21 L-diagnostic
22 Right rear video output (-) (not used)
23 Right rear video output (+) (not used)
24 Rear audio screen (not used)
25 Left rear video output (-) (not used)
26 Left rear video output (+) (not used)
27 Rear screen ground (not used)
28 Rear com. sync. (-) (not used)
29 Rear com. sync. (+) (not used)
30 Rear blue signal (-) (not used)
31 Rear blue signal (+) (not used)
32 Rear green signal (-) (not used)
33 Rear green signal (+) (not used)
34 Rear red signal (-) (not used)
35 Rear red signal (+) (not used)
36 Rear video screen (not used)
40 Left rear video input (-) (not used)
41 Right rear video input (-) (not used)
42 Rear A/V ground input (not used)
43 Rear S-VHS (Y) input (not used)
44 Rear S-VHS (C) input (not used)
45 Rear CVBS input (not used)
46 Rear A/V whole screen input
47 Left front video input (-) (not used)
48 Right front video input (-) (not used)
49 Front A/V ground input (not used)
50 Front S-VHS (Y) input (not used)
51 Front S-VHS (C) input (not used)
52 Front CVBS input (not used)
53 Front A/V whole screen input
