Inside Loudspeaker

Inside Loudspeaker

- Turn off all electrical consumers.

- Remove ignition key.

Removing

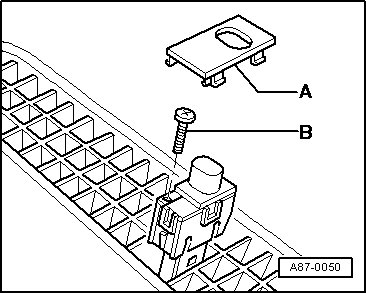

- Carefully pry off cover - A - on Sunlight Photo Sensor (3241) (G107).





- Remove bolt - B - (1 Nm).

- Disconnect connector on Sunlight Photo Sensor (3241) (G107) and remove it.

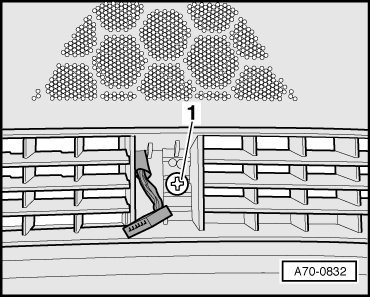

- Remove screw - 1 - (1 Nm).





- Remove defroster vent.

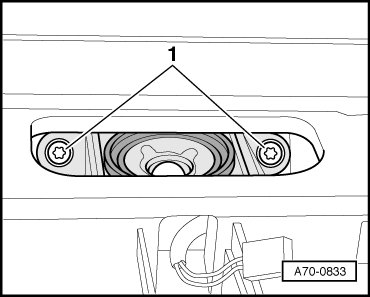

- Remove both screws - 1 - (2 Nm) on the Inside Speaker (R70).





- Tip Inside Loudspeaker (R70) out and disconnect connector on it.

Installing

- Install in reverse order.
