Telephone/Telematics Control Module Connectors
Telephone/Telematics Control Module Connectors
Connectors

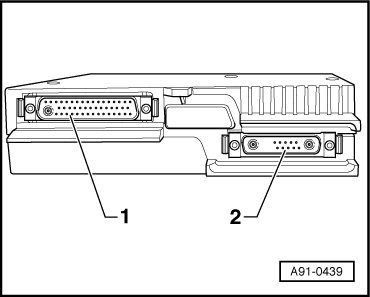

1 Black 46-pin harness connector (T46)
2 Black 10-pin harness connector (T10m)
• Unlisted connector terminals are not assigned.
1 - Black 46-pin harness connector (T46)
1 NF (-) to the Speaker (Telephone/Navigator) (R39) (through MY 2001)/Radio (R)/Speech Input Control Module (J507)
2 NF (+) to the Speaker (Telephone/Navigator) (R39) (through MY 2001)/Radio (R)/Speech Input Control Module (J507)
3 Telephone Handset (R37) PIN 8
4 Telephone Handset (R37) PIN 7
5 Telephone Handset (R37) PIN 5
6 Telephone Handset (R37) PIN 4
10 LED Roadside Assistance Button (E275)
11 LED Emergency Call Button ( E276)
12 Screen ground to Fax Machine (R73)
13 Fax Machine (R73) PIN 6 (CTS)
14 Fax Machine (R73) PIN 3 (TXD)
16 Auxiliary Speaker (Telematics) (R91) (-)
17 Auxiliary Speaker (Telematics) (R91) (+)
18 Telephone Handset (R37) PIN 9
19 Telephone Handset (R37) PIN 1
20 Telephone Handset (R37) PIN 3
21 Roadside Assistance Button (E275)
22 Speed signal
23 Signal from Back-Up Light Switch (F4)
27 Fax Machine (R73) PIN 5 (RTS)
28 Fax Machine (R73) PIN 2 (RXT)
29 Fax Machine (R73) PIN 7 (ground)
30 Microphone input (+) from Telephone Microphone (R38)/Speech Input Control Module (J507)
31 Microphone input (-) from Telephone Microphone (R38)/Speech Input Control Module (J507)
32 Telephone Handset (R37) PIN 10
33 Telephone Handset (R37) PIN 6
34 Telephone Handset (R37) PIN 2
35 Telephone Handset (R37) Screen
36 Crash signal from Airbag Control Module (J234)
37 Emergency Call Button ( E276)
38 CAN-Bus High (Infotainment)
39 CAN-Bus Low (Infotainment)
41 K diagnostic
42 Fax Machine (R73) PIN 4 (DTR)
43 Fax Machine (R73) PIN 1 (DCD)
A1 GPS connection (blue) from Navigation System Antenna (R50)

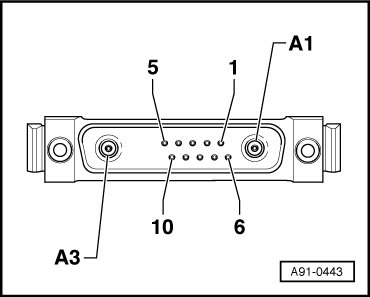

2 - Black 10-pin harness connector (T10m)
1 Terminal 30
2 NF mute to Radio (R)/Speech Input Control Module (J507)
3 Terminal 15
4 Terminal 31
5 Terminal 31
6 Terminal 30
7 Terminal 30
9 Terminal 58s (through MY 2001)
10 Terminal 31
A1 GSM connection (purple) from Telephone Antenna (R65)
A3 Auxiliary Antenna, Telematics (R90)
