Fuel Filler Door

Fuel Filler Door

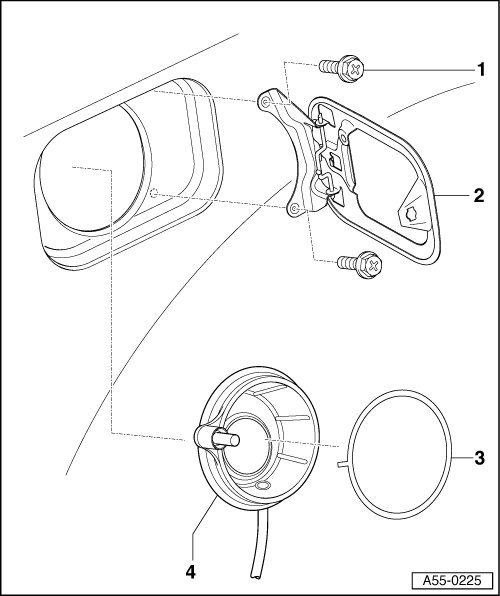

Fuel filler door, removing and installing





1 Screw

• 1.5 Nm

2 Fuel filler door

• To remove, remove bolts => [ (Item 1) Screw ] and remove fuel filler door.

3 Circlip

• Remove before removing filler neck cup.

4 Filler neck cup

• Removing:

- Remove securing clip => [ (Item 3) Circlip ].

- Raise cup out of opening slightly.

- Remove drain hose from lower guide piece and completely remove from opening with cup.

• Installing:

- Coat cup with lubricant (e.g. soap solution).

- Slide drain hose into body opening.

- Press cup completely into opening.

- Insert circlip.

- Insert drain hose into lower guide piece => [ Insert filler neck cup drain hose into guide
piece ].

• Panel gap dimensions => [ Panel gap dimensions ] Rear Lid.

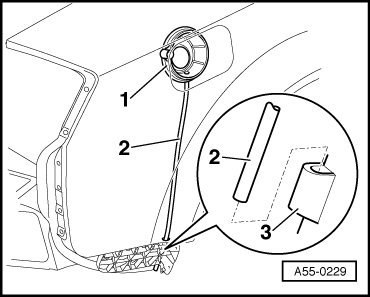

Insert filler neck cup drain hose into guide piece





- Remove rear wheel housing liner bolts in guide piece area.

- Pull wheel housing liner back slightly and insert drain hose - 2 - for cup - 1 - in bumper guide piece eyelet - 3 -.
