Base Bracket, Removing and Installing

Base Bracket, Removing And Installing

Special tools, testers and auxiliary items required







- Torque wrench V.A.G 1410

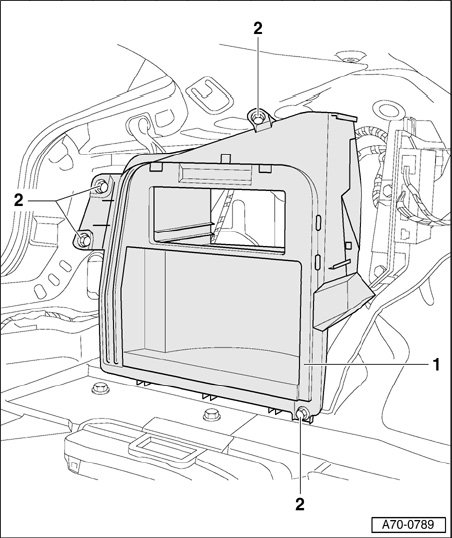

1 - Base bracket

- Removal:
- Remove side trim luggage compartment on left side of vehicle.
- Remove four bolts - 2 - on base mount - 1 -.
- Remove base mount - 1 -.

- Installing:
Installation is reverse of removal.

2 - Screws (4x)
- Tightening torque 4 Nm
