Attachments Assembly Overview

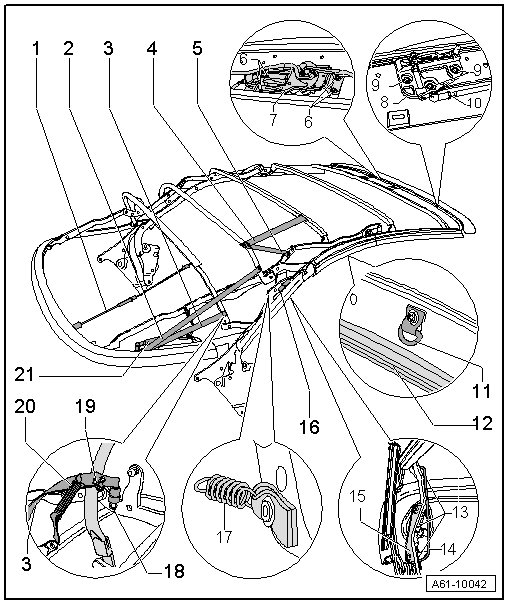

Attachments Assembly Overview





1 Guide cable - rear window

Removing => Attachments.

2 Bracket strap - rail "4"

Removing => Attachments.

3 Bracket strap - rail "5"

Removing => Attachments.

4 Rubber strap for rail "3" and "4"

Removing => Attachments.

5 Center brace strap - rail "4"

Removing => Attachments.

6 Convertible Top Locking Motor (V223) bolts

10 Nm

7 Convertible Top Locking Motor (V223), (Convertible Top Lock Switch (open) (F294), Convertible Top Lock Switch (closed) (F295))

Removing => [ Convertible Top Switches ] Convertible Top Switches.

8 Convertible top lock

Removing => [ Convertible Top Lock ] Service and Repair.

Adjusting => [ Convertible Top Lock, Checking and Adjusting ] Testing and Inspection.

9 Convertible top lock bolts

9 Nm

10 Nut

6 Nm

11 Cable eyelet- headliner

Removing => Attachments.

12 Plastic profile

Only on first generation vehicles.

Removing => Attachments.

13 Screw

4 Nm

14 Tensioning wire - headliner

Removing => Attachments.

15 Tensioning element - headliner

Removing => Attachments.

16 Convertible top cover tensioning cable

Removing => Attachments.

17 Cable spring - headliner (lengthwise)

Removing => Attachments.

18 Cable spring - headliner (across)

Removing => Attachments.

19 Cable eyelet- headliner

Removing => Attachments.

20 Center brace spring - rail "5"

Removing => Attachments.

21 Bracket insulation element

Removing => Attachments.
