Seat Height Adjustment Handle, Removing and Installing

Seat Height Adjustment Handle, Removing And Installing

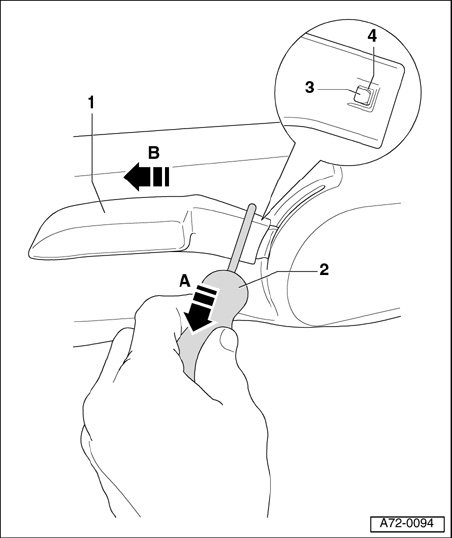

1 - Seat height adjustment handle

Removing
- Create an assisting tool.
- Pull seat height adjustment handle - 1 - fully upward.
- Guide assisting tool - 2 - into mount - 4 -.
- Pull assisting tool - 2 - in - direction of arrow A - to push spring - 3 - back.
- Pull seat height adjustment handle - 1 - in - direction of arrow B -.

Installing
Installation is reverse of removal, but note the following:
- Note installation position of retaining clamp.
2 - Assisting tool
3 - Spring
4 - Mount







Preparing assist tool to remove seat height adjusting handle
- Bend a screwdriver - 1 - with a width - 2 - of 3.5 mm and dimensions - A - 20 mm and - B - max. 15 mm.







Retaining clamp installation position
- Ensure springs - 2 - (2x) in retaining clamp - 3 - are position on outside of lever - 1 -.
