Seat Height Adjustment Unit Release Cable

Front Seats

• From 06.2006, the usual wiring harness routing to connector station under front seat. Refer to => [ Connectors, Disconnecting ] Front Seats has been replaced with modular wiring routing => [ Modular Wiring Routing Assembly Overview, from June 2006 ] Front Seats.

• The modular wiring routing has not been implemented for all countries.

• Check version of front seat and of vehicle and perform repairs accordingly.

• Note the two possible versions of the modular wiring routing, Modular Light or Modular. Refer to => [ Modular Wiring Routing Versions ] Front Seats.

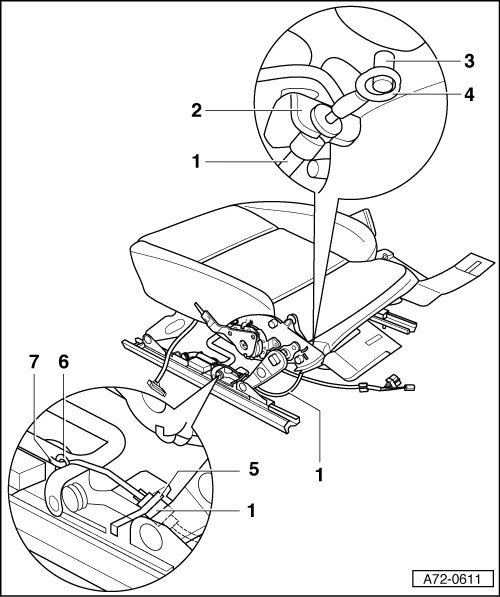

Seat Height Adjustment Unit Release Cable





1 - Seat Height Adjustment Unit Cable

• Removing

- Remove seat.

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Attach the front seat to the fixture for seat repair (VAS 6136).

- Remove side trim on sill side. Refer to => [ Side Trim, Sill Side ] Side Trim, Sill Side.

- Remove side trim on tunnel side. Refer to => [ Side Trim, Tunnel Side ] Side Trim, Tunnel Side.

- Remove the backrest. Refer to => [ Front Backrest ] Front Backrest.

- Disengage release. Refer to - 10 - from bracket - 2 -.

- Disengage eyelet. Refer to - 4 - from pins - 3 -.

- Disengage release - 10 - from bracket - 5 -.

- Disengage release on hook - 7 - from bracket - 6 -.

• Installing

- Install the seat height adjustment unit cable - 1 - in reverse order to removal.

2 - Bracket

3 - Bolts

4 - Eye

5 - Bracket

6 - Bracket

7 - Hook
