Seat Pan, Standard Seat

Seat Pan, Standard Seat

• Only the sport-seat seat pan is available as a replacement part. Retrofit the sport-seat seat pan for the normal seat.

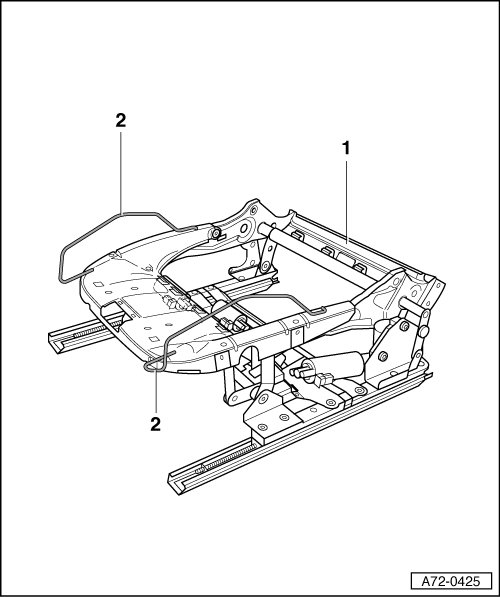

1 - Sports Seat Pan

• Adaptation

- Remove wire brackets - 2 - (Qty. 2) from sport-seat seat pan - 1 -.

- The paint construction must be re-established according to specifications of Repair Information "Vehicle Paint" and if necessary, corrosion repair measures must be taken according to folder "Surface Technology/Chemical Materials".

2 - Wire Bracket (Qty. 2)
