Measured Value Block, Overview
General Information
The new seat adjustment with memory generation features On Board Diagnostic (OBD) capability. The control module for seat adjustment with memory is equipped with a DTC Memory.
Malfunctions occurring in monitored components/wiring are stored in DTC memory together with an indication of the type of malfunction.
If any control elements are replaced they must be adapted and a basic setting must be initiated => [ Seat Control Element, Basic Setting ].
On Board Diagnostic (OBD), initiating program
Test requirements:
• Voltage supply and fuses for appropriate systems OK.
• Connecting scan tool (VAS5051) => [ VAS 5051, Connecting ] VAS 5051, Connecting
• Switch ignition on.
• If no display appears, use wiring diagram to check power supply for (VAS5051)
• Additional operating instructions can be called up by pressing the Scan Tool HELP button.
• The next step in the program sequence can be selected by pressing the -> button.
• Incorrect entries can be terminated by pressing the C button..
- Switch on printer by pressing Print button (indicator lamp in button lights up).
- Press button 1 for "Rapid data transfer".
Indicated on display:
Rapid data transfer HELP
Enter address word XX
Measured Value Block, Overview

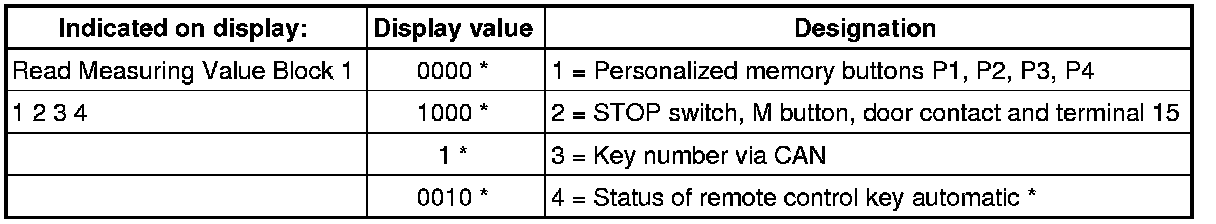

Measuring value block 001

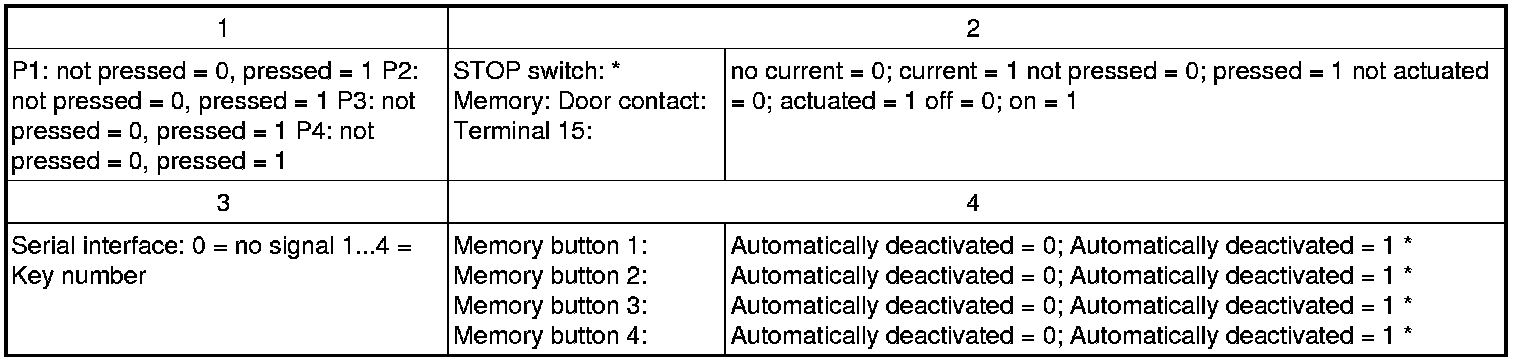

* Example. Evaluation of display values.
* Display for code 00002.
Display value table
* If the procedure is aborted by pressing the STOP button all four digits will change to "0".
* Display for code 00001: Display zone 4 = Assignment of remote control key recall button.
• Memory button 1: unassigned = 0; assigned = 1
• Memory button 2: unassigned = 0; assigned = 1
• Memory button 3: unassigned = 0; assigned = 1
• Memory button 4: unassigned = 0; assigned = 1

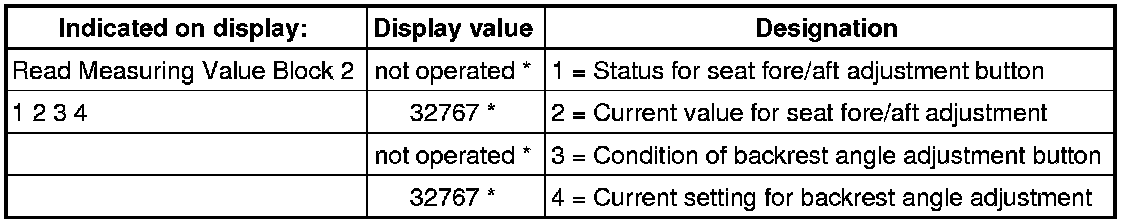

Measuring value block 002
* Example of display.
Table of readouts
* Figure between 0...65535, central position: 32767
Measuring value block 003
* Example of display.
Table of readouts
* Figure between 0...65535, central position: 32767
Measuring value block 004
* Example of display.
• The values shown are the values stored for memory location 1.
Table of readouts
* Figure between 0...65535, central position: 32767
Measuring value block 005
* Example of display.
• The values shown are the values stored for memory location 2.
Table of readouts
* Figure between 0...65535, central position: 32767
Measuring value block 006
* Example of display.
• The values shown are the values stored for memory location 3.
Table of readouts
* Figure between 0...65535, central position: 32767

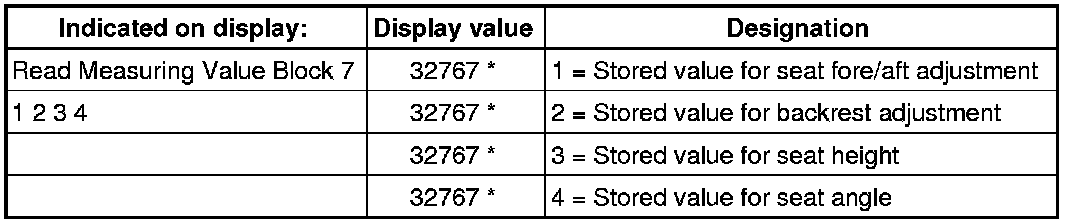

Measuring value block 007
* Example of display.
• The values shown are the values stored for memory location 4.
Table of readouts
* Figure between 0...65535, central position: 32767

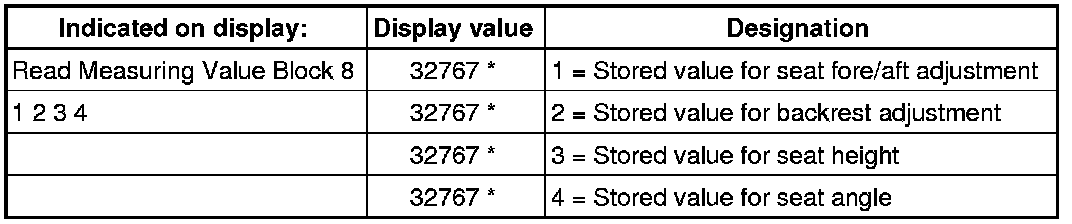

Measuring value block 008
* Example of display.
• The values are applicable for remote control key memory location 1 and code 00002.
Table of readouts
* Figure between 0...65535, central position: 32767
Measuring value block 009
* Example of display.
• The values are applicable for remote control key memory location 2 and code 00002.
Table of readouts
* Figure between 0...65535, central position: 32767

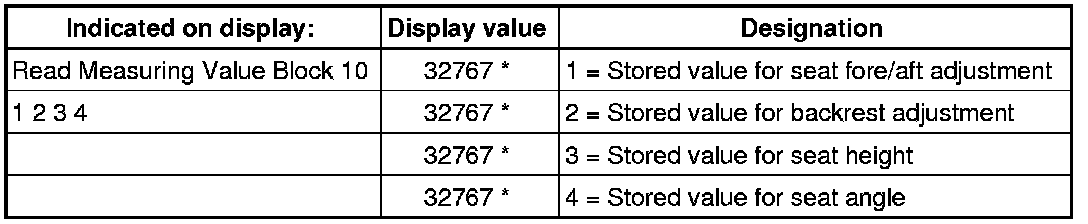

Measuring value block 010
* Example of display.
• The values are applicable for remote control key memory location 3 and code 00002.
Table of readouts
* Figure between 0...65535, central position: 32767

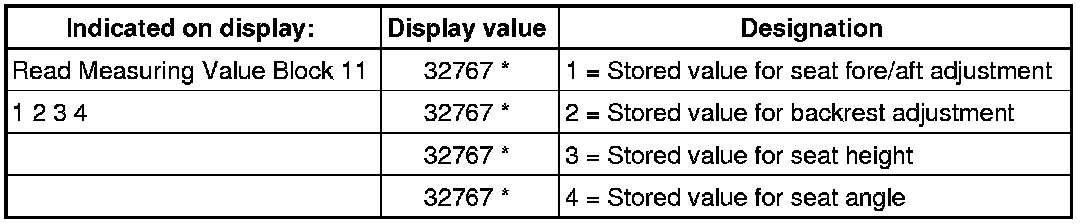

Measuring value block 011
* Example of display.
• The values are applicable for remote control key memory location 4 and code 00002.
Table of readouts
* Figure between 0...65535, central position: 32767

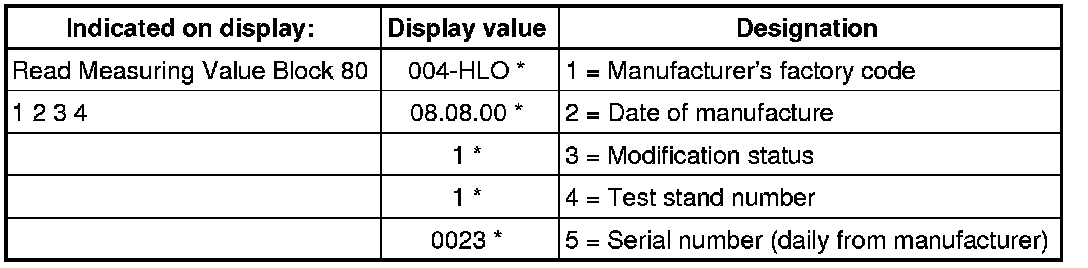

Measuring value block 080
* Example of display.

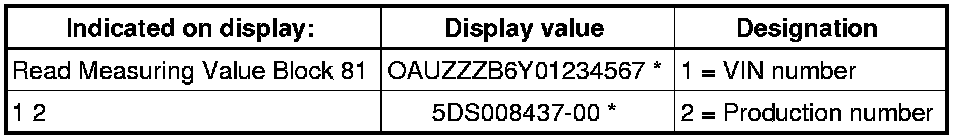

Measured value block 081
* Example of display.

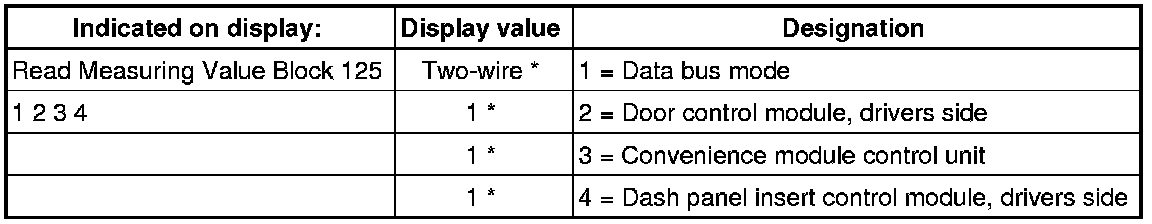

Measuring value block 125
* Example of display.
Table of readouts
Measuring value block 126
* Example of display.
Table of readouts
