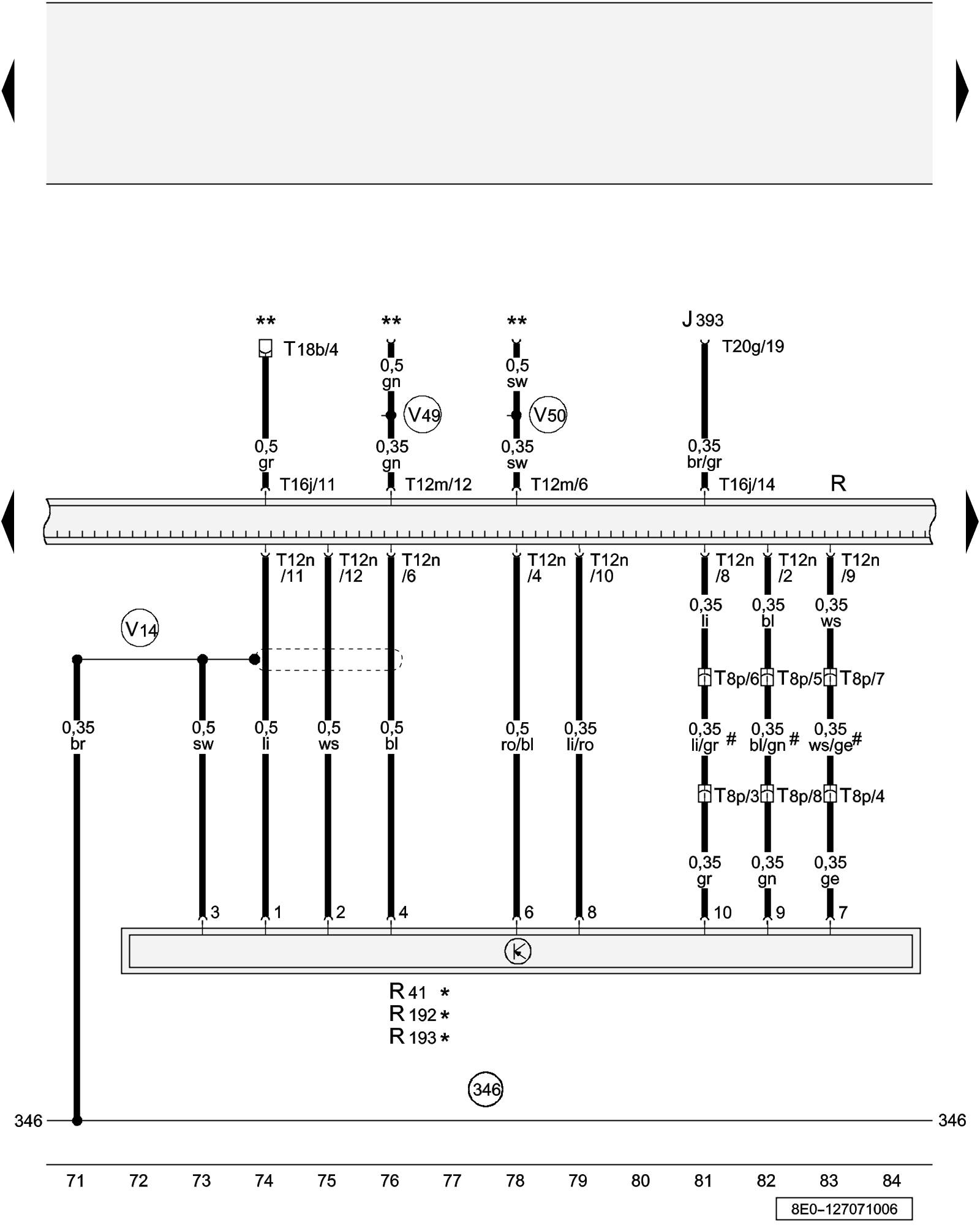

Diagram 127/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


CD Changer, iPod Baseplate, USB Connection Baseplate





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort System Central Control Module Convenience System Overview

R - Radio

R41 - CD Changer

R192 - iPod Baseplate

R193 - USB Connection Baseplate

T8p - 8-Pin Connector, black, on Satellite Radio

T12m - 12-Pin Connector, green, Connector C

T12n - 12-Pin Connector, blue, Connector B

T16j - 16-Pin Connector, black, Connector D

T18b - 18-Pin Connector, black, near glove compartment, Connector A

T20g - 20-Pin Connector, red, on central control module for comfort system

(346) - Audio Ground Connection (in instrument panel wiring harness)

(V14) - Connection (shielding) (in CD-changer wiring harness)

(V49) - Low Frequency + Connection (in communication wiring harness)

(V50) - Low Frequency - Connection (in communication wiring harness)

* - with CD Changer Unit or iPod Baseplate or USB Connection Baseplate only

** - => Current wiring diagram for cellular telephone

# - Connector bridge for CD-changer Unit without Satellite Radio only
