Diagram 95/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

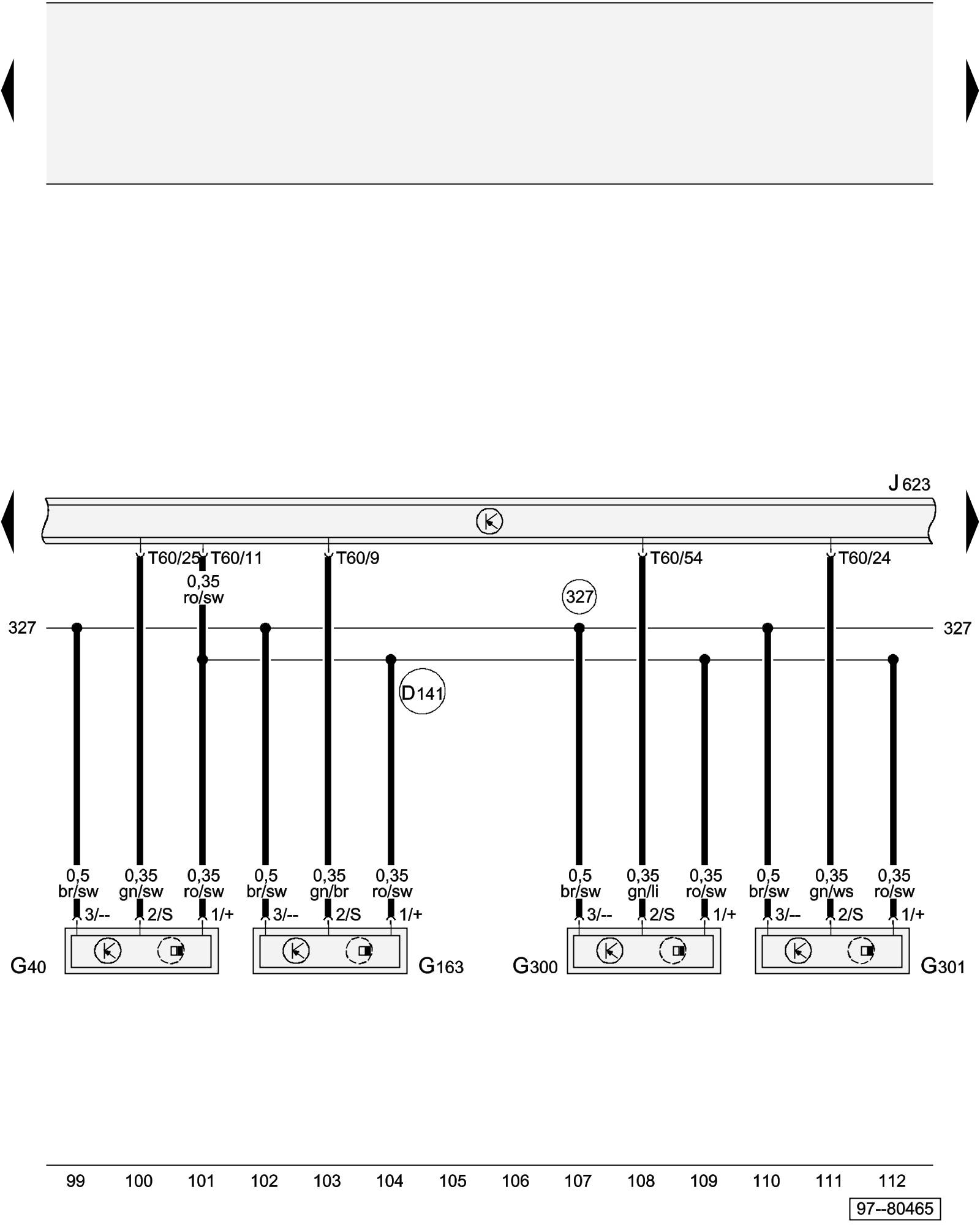

Engine Control Module (ECM), Camshaft Position (CMP) Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft Position (CMP) Sensor Locations

G163 - Camshaft Position (CMP) Sensor 2 Locations

G300 - Camshaft Position (CMP) Sensor 3 Locations

G301 - Camshaft Position (CMP) Sensor 4 Locations

J623 - Engine Control Module (ECM) Locations

T60 - 60-Pin Connector, black

(327) - Sensor Ground Connection (in engine compartment wiring harness)

(D141) - Connection (5V) (in wiring harness), engine pre-wiring
