Engine Coolant Temperature Sensor

Engine Coolant Temperature Sensor

Removing

- Drain coolant. Refer to => [ Cooling System, Draining and Filling ] Procedures.

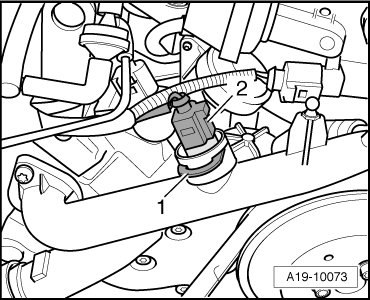

- Remove front engine cover - arrows -.





- Disconnect electrical connector - 2 - on Engine Coolant Temperature (ECT) Sensor (G62).





- Remove retaining clip - 1 - and Engine Coolant Temperature (ECT) Sensor (G62).

Installing

Installation is in reverse order of removal, noting the following:

• Replace O-ring.

- Fill with coolant => [ Filling ] Procedures.
