Air Cleaner Housing: Service and Repair

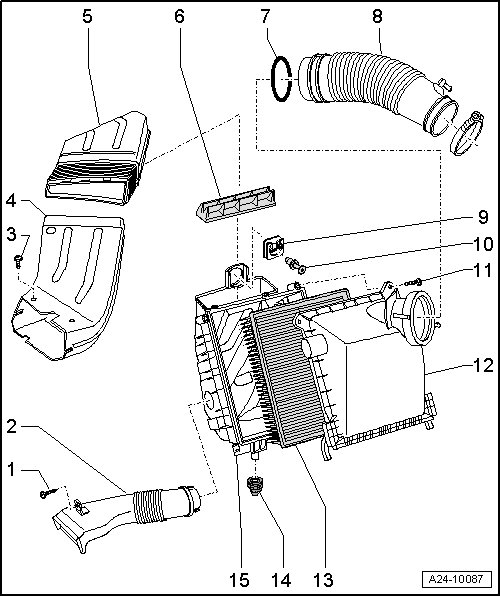

Air Filter Component Overview





1 1.5 Nm

2 Air Duct

• Clipped into lower section of air filter housing

• Clean air duct of dirt and leaves

3 1.5 Nm

4 Air Duct

• To lock carrier

• Clean air duct of dirt and leaves

5 Air Duct

• Clean air duct of dirt and leaves

6 Strainer

7 O-Ring

• Replace

8 Air Duct Hose to Throttle Valve Control Module ( J338)

9 Rubber Grommet

10 Spreader Clip

11 1.5 Nm

12 Air Filter Housing Upper Section

• Clean the air filter housing-upper section of salt residue, dirt and leaves

13 Air Filter Element

• Always use a genuine air filter element

• Removing and installing, refer to => [ Air Filter Element ] Service and Repair.

• Maintenance intervals, .

14 Rubber Grommet

15 Air Filter Housing Lower Section

• Clean the air filter housing-lower section of salt residue, dirt and leaves
