Preparing Adapter Cables For Control Motor Actuation






Preparing Adapter Cables for Control Motor Actuation

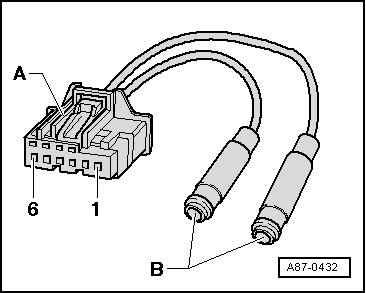

- Connect one wire with a cross section of 0.25 mm2 each to terminals "5" and "6" of one connector - A - (part number 6Q0 972 706).





- Connect the other end of each wire to a commercially available banana connector - B -.
