Tail Lamp, Aligning

Tail Lamp, Aligning

Procedure





• Tail lamps removed, refer to => [ Tail Lamp and Bulb Holder ] .

- Change position of adjusting elements in steps with taillight removed.

- Install again each time as an adjustment check of the taillight.

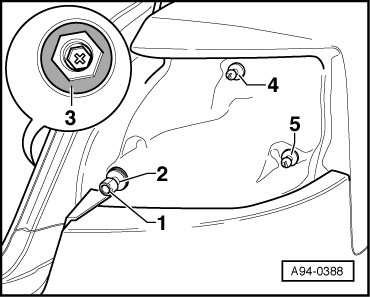

1 Interior adjustment in longitudinal direction
2 Adjustment perpendicular to driving direction: (loosen the nut - 3 -)
4 Upper adjustment in longitudinal direction
5 Lower adjustment in longitudinal direction

- Install the tail lamp.

Tightening Specifications
