Right Connector Station

Right Connector Station

Removing

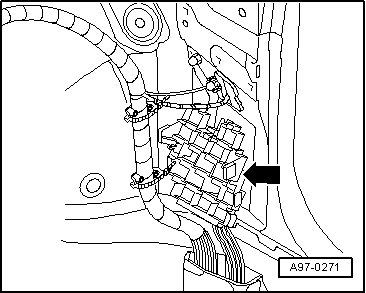

• Location: Right connector station - arrow - is located in right footwell beneath A-pillar trim.





CAUTION!
• Switch off all electrical consumers.

• Switch ignition off and remove ignition key.

- Remove A-pillar trim:.

- Press retaining clip and detach connector point from A-pillar - arrow -.

- Unclip fuse panel at connector point.

- Remove relays or control modules and then unclip appropriate relay carrier.

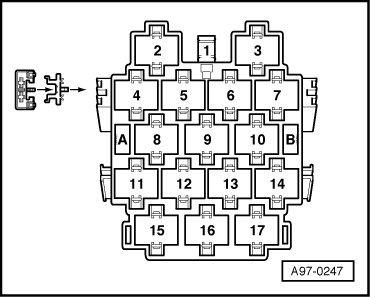

• Refer to the applicable wiring diagram for exact identification of connections on connector station => Wiring Diagrams.





Installing

Install in reverse order of removal, noting the following:

- Install A-pillar trim:.
