Diagram 97/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


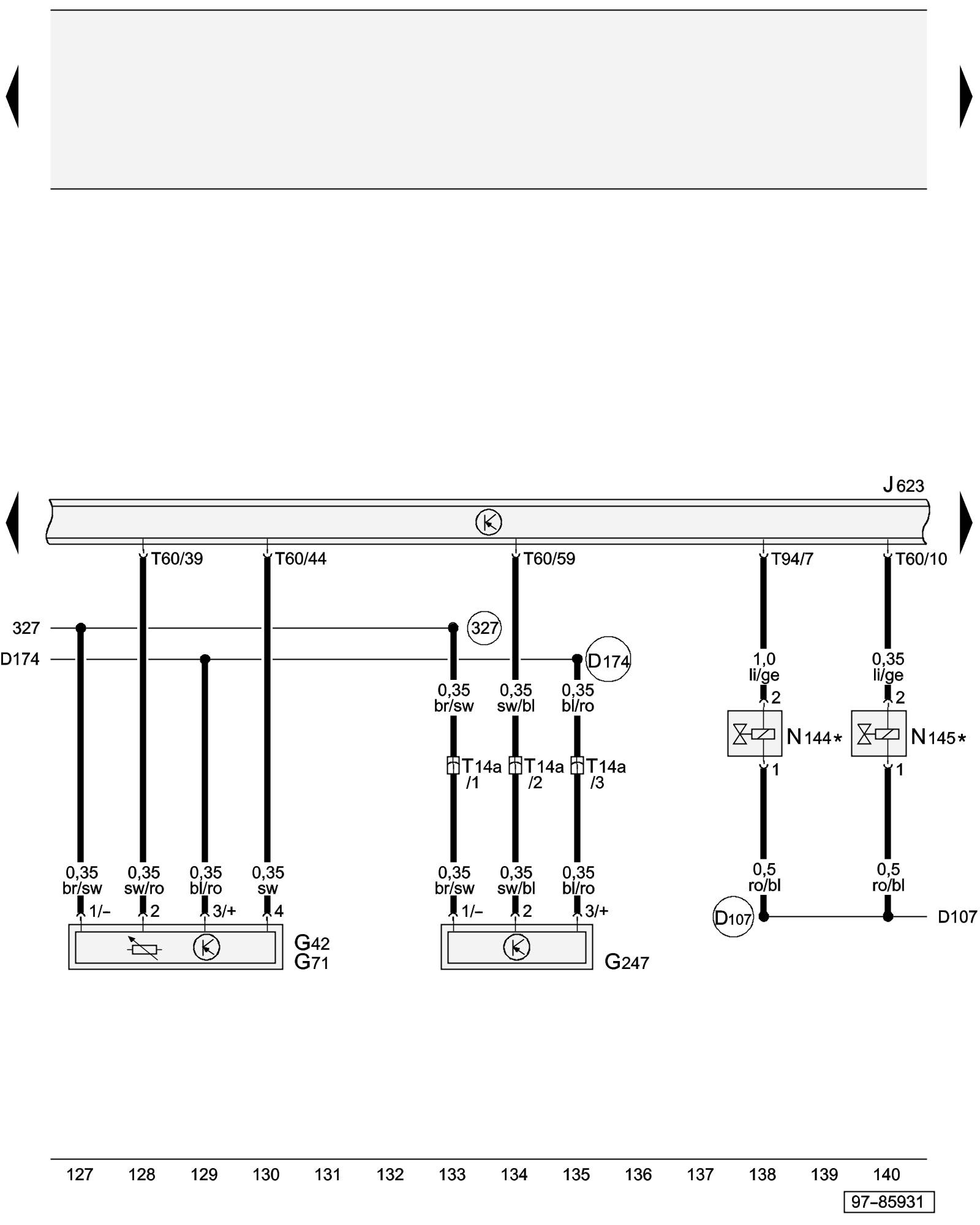

Engine Control Module (ECM), Intake Air Temperature (IAT) Sensor, Manifold Absolute Pressure (MAP) Sensor, Fuel Pressure Sensor, Electro-Hydraulic Engine Mount Solenoid Valves





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G42 - Intake Air Temperature (IAT) Sensor

G71 - Manifold Absolute Pressure (MAP) Sensor

G247 - Fuel Pressure Sensor

J623 - Engine Control Module (ECM)

N144 - Left Electro-Hydraulic Engine Mount Solenoid Valve

N145 - Right Electro-Hydraulic Engine Mount Solenoid Valve

T14a - 14-Pin Connector, black, in engine compartment, left

T60 - 60-Pin Connector, black

T94 - 94-Pin Connector, black

(327) - Sensor Ground Connection (in engine compartment wiring harness)

(D107) - Connection 5 (in engine compartment wiring harness)

(D174) - 5V Connection 2 (in engine wiring)

* - Automatic transmission (multitronic 01J / multitronic 0AN or AG6) only

Previous Diagram 97/10 (Tracks 113-126)

Next Diagram 97/12 (Tracks 141-154)
