Navigation System - Route Guidance Activates By Itself
91 Navigation plus (RNS-E) route guidance activates by itself91 09 81
2013021/4
December 3, 2009.

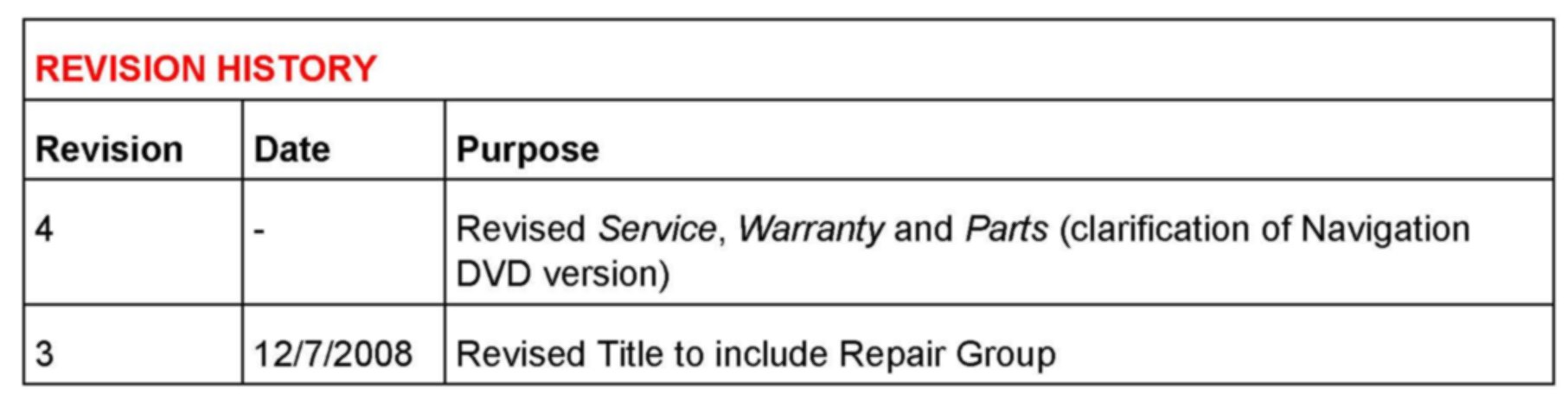

Supersedes Technical Service Bulletin Group 91 number 08-64 dated November 7, 2008 for reasons listed below.

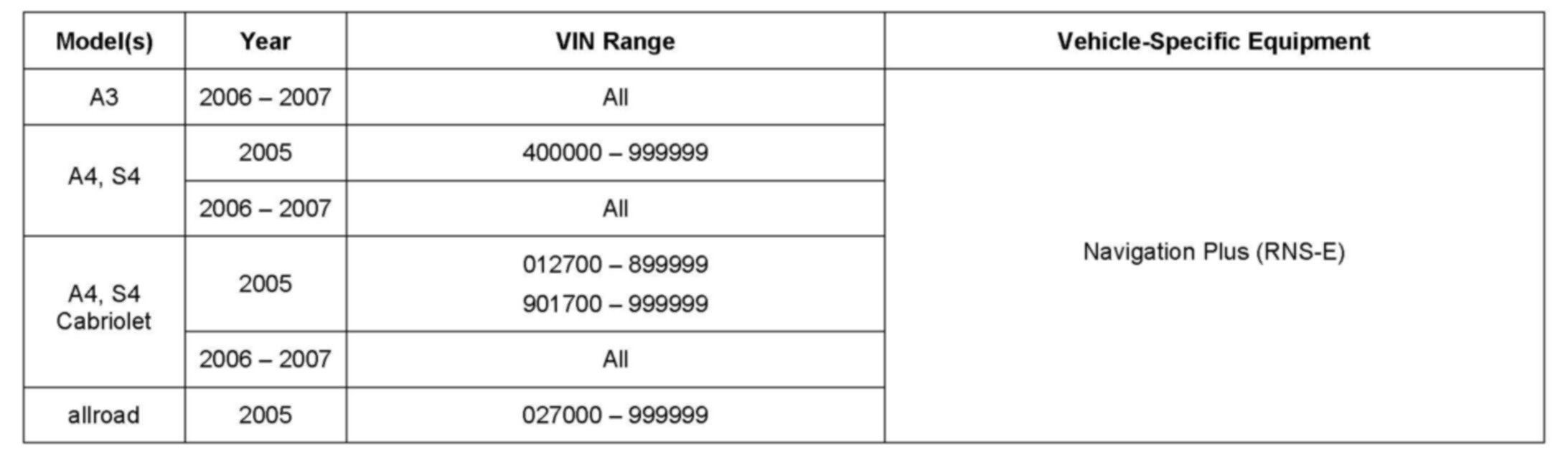

Affected Vehicles
Condition
When the vehicle is started, Navigation plus (RNS-E) route guidance activates on its own. During a previous ignition cycle the guidance had been cancelled or successfully completed, and therefore should remain inactive.
Technical Background
The Navigation plus internal memory flag for a completed route guidance is inadvertently erased.
Production Solution
Updated software, version 0150, beginning with November 2006 vehicle production.
Service
Perform software update using Version 2007 (or newer) Navigation plus DVD.
Note:
The software download takes approximately 5 minutes to complete and consists of two parts. Do not remove the DVD prior to completion.

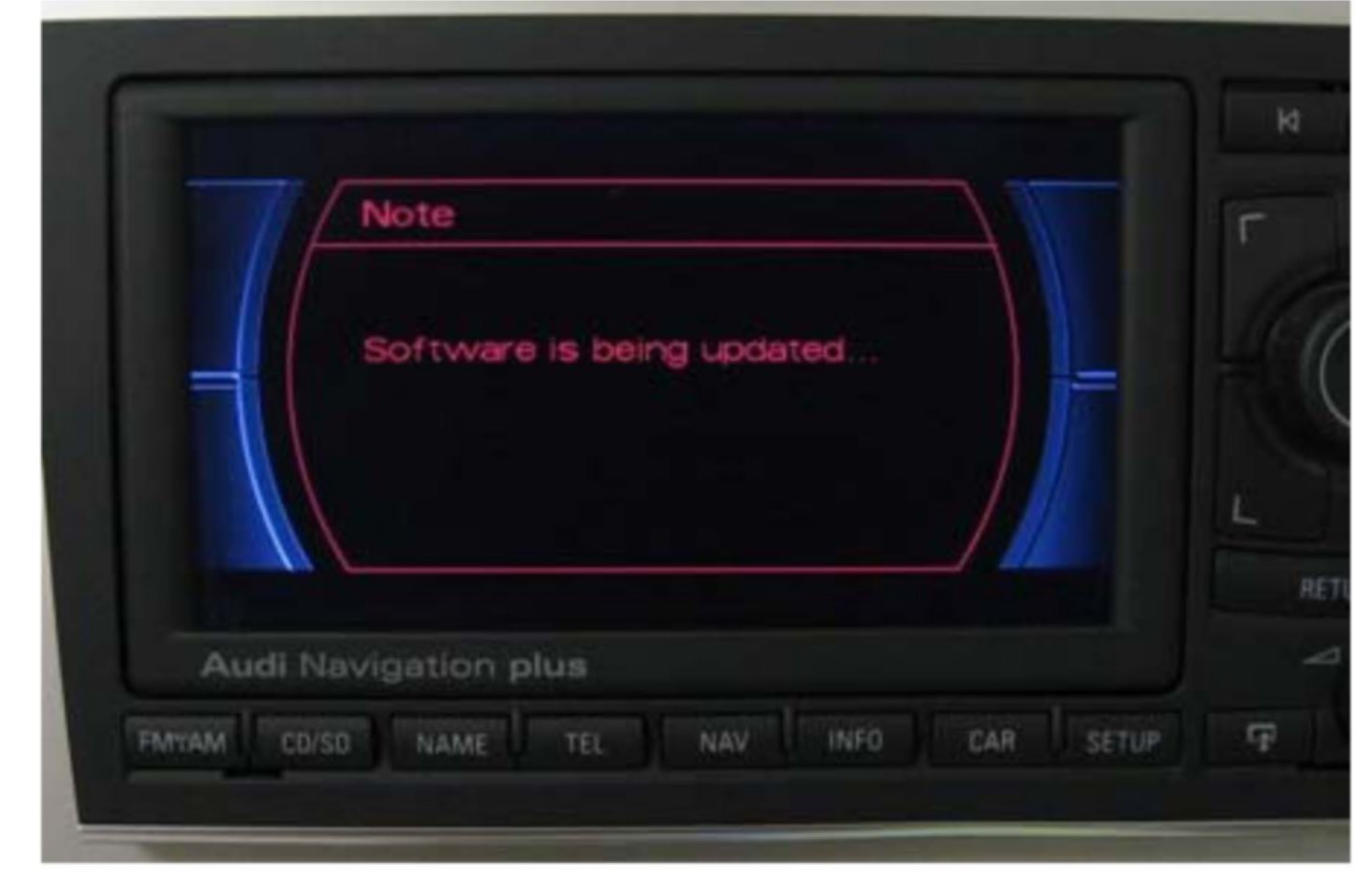

1. Obtain a Version 2007 (or newer) Navigation plus DVD from dealership inventory or another stock vehicle and insert it into the Navigation plus unit. Within approximately 30 seconds, the software update will automatically begin. After approximately 2 minutes, the first part of the software is loaded and the system will reboot.

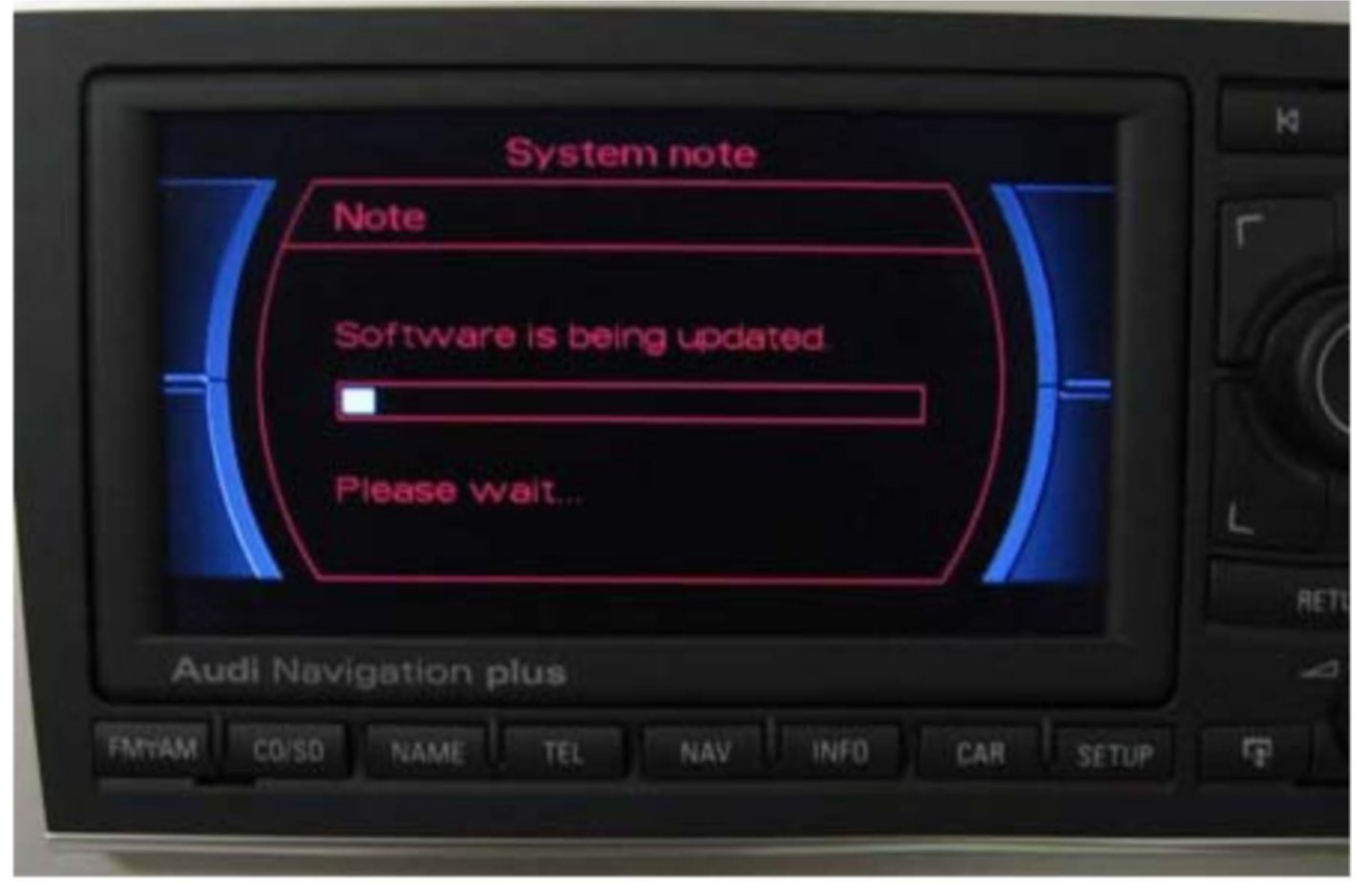

2. The second part of the download will begin and take approximately 2 minutes. Once the second part of the software is loaded, the system will reboot again.

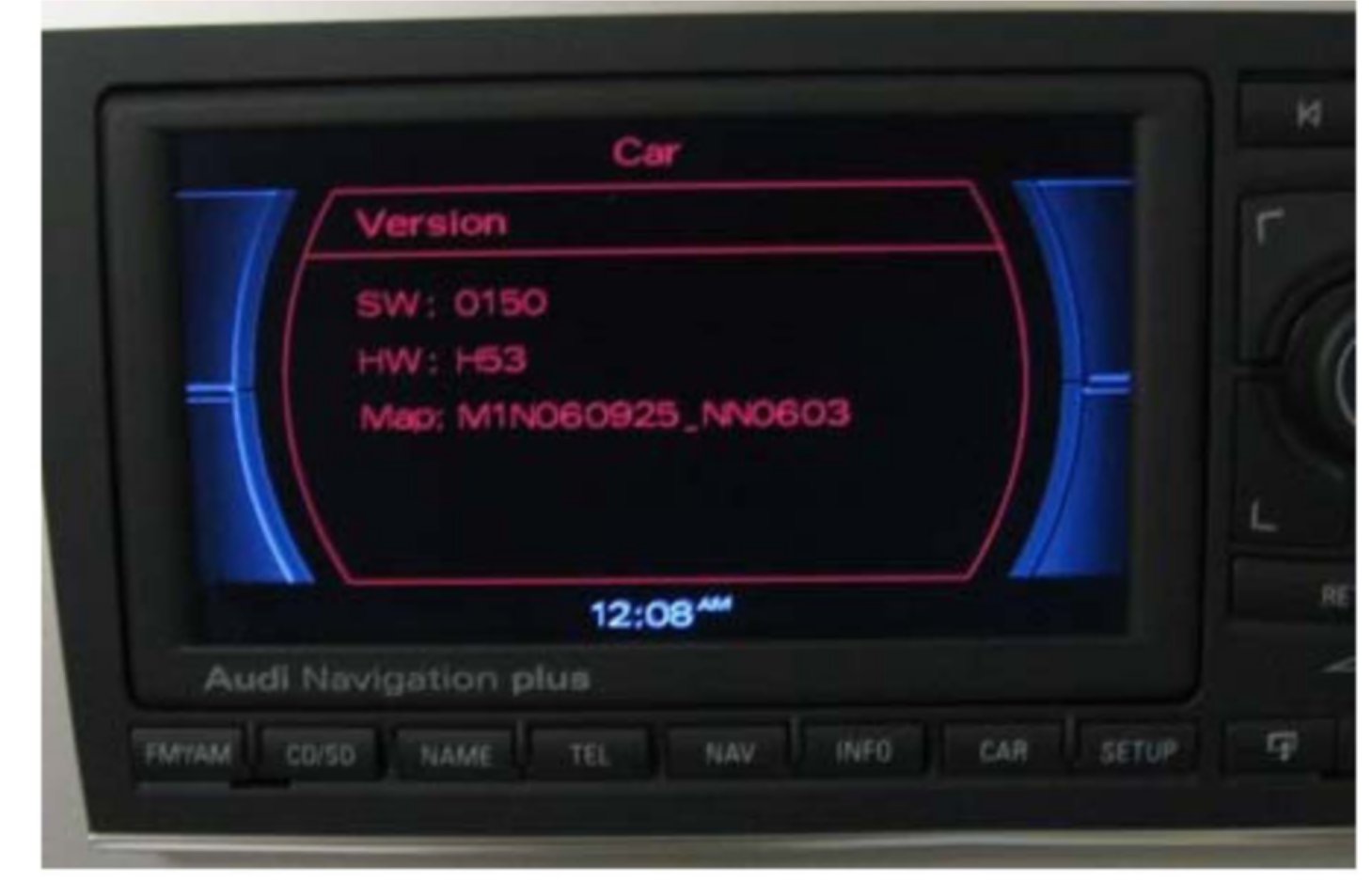

3. Once the radio is powered on, press the CAR button then select Version to verify the Software Version is 0150, or higher. Eject the DVD used for the update and reinsert the customer's original DVD into the Navigation plus drive.

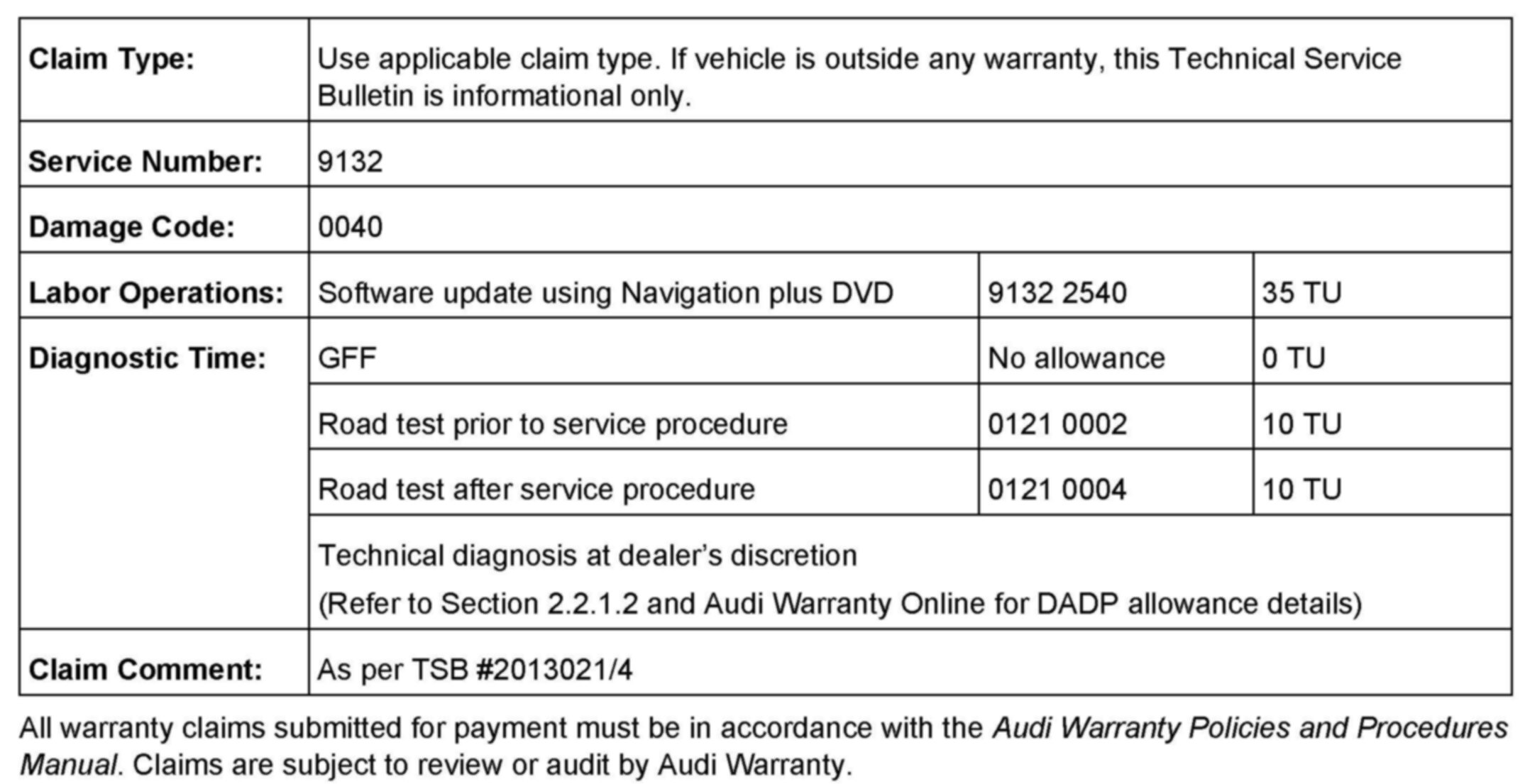

Warranty

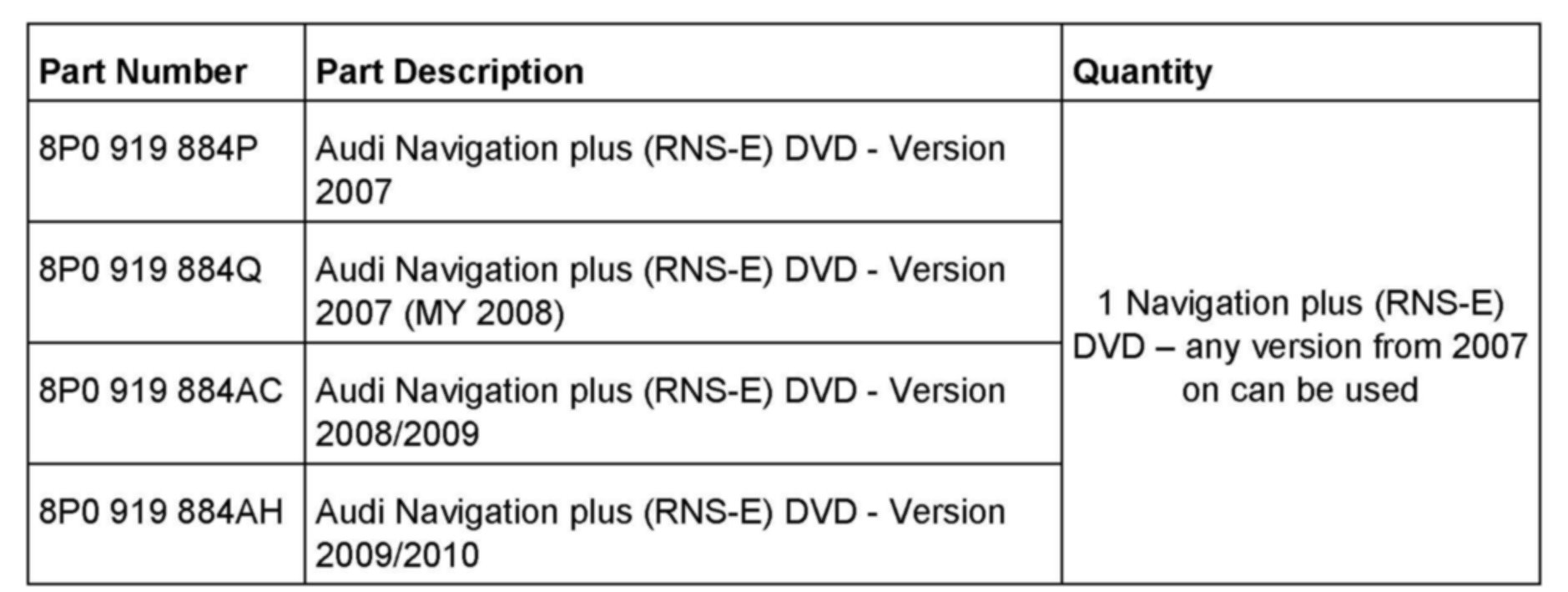

Required Parts and Tools
Beginning in November 2006, Version 2007 navigation DVDs have been installed in model year 2007 vehicles at the factory as well as shipped to dealers for all model year 2007 vehicles delivered from the port.
Should additional DVDs be necessary, they can only be purchased directly from Navteq.
Additional Information
Refer to the following Technical Service Bulletin for further information:
^ TSB 2013790, Navigation DVD can't be ejected
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
