Differential Output Shaft, A/T

Fastener Tightening Specifications





• 1 Always replace

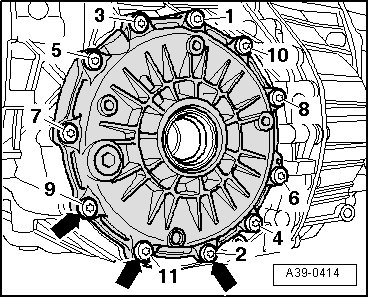

Front Final Drive Bolt Tightening Sequence and Specifications





- Tighten the bolts for the front final drive cover in 2 stages in sequence shown- 1 to 11 -, always replace the bolts:

• Tighten the bolts in sequence hand tight.

• Tighten the bolts in sequence to 25 Nm.
