Ribbed Belt Pulley With Freewheel, Removing and Installing

Ribbed Belt Pulley with Freewheel, Removing and Installing

Special tools, testers and auxiliary items required

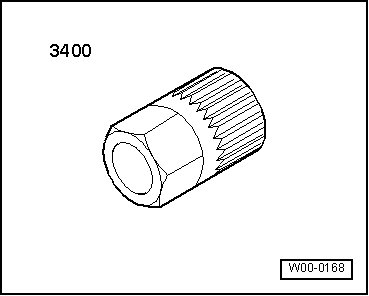

• Multi-point adapter (3400)





• 8 mm hex socket or TORX T50

Removing





- Remove generator.

- If present, press the protective cap off the generator pulley.

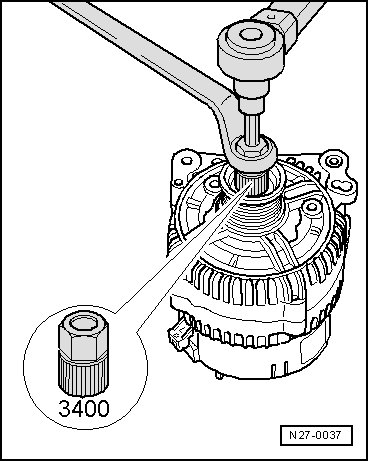

- Counter pulley with Multi-Tooth Adapter (3400 ) and turn generator shaft clockwise to loosen.

Installing

Install in reverse order of removal, observing the following:

- Turn the generator shaft counterclockwise to tighten.

- Clip protective cap onto generator pulley.

Tightening torque
