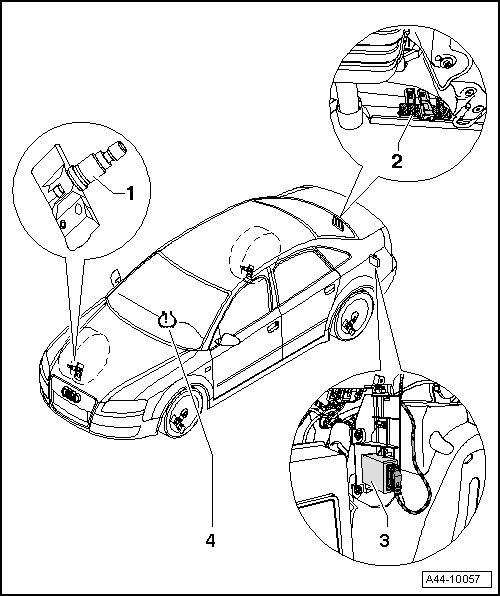

Tire Pressure Monitoring System, Component Overview

Tire Pressure Monitoring System, Component Overview





1 Left Front Tire Pressure Monitoring Sensor ( G222), Right Front (G223), Rear Left ( G224) and Rear Right (G225)

• Spare Tire Pressure Monitoring Sensor (G226)

• Removing and installing. Refer to => [ Metal Valve Body, ] Service and Repair

2 Rear Tire Pressure Monitoring Antenna (R96)

• Removing and installing. Refer to => [ Rear Tire Pressure Monitoring System Antenna ] Service and Repair

3 Tire Pressure Monitoring Control Module (J502 )

• If Tire Pressure Monitoring Control Module (J502 ) is replaced, system must be recoded.

4 Display in instrument cluster

• See Vehicle diagnostic, test and information system (VAS 5051A)
