Clutch C Component Overview

Clutch C Component Overview

• Some of the depicted components are part of component groups and are not available separately as replacement part.

• Before assembling, check components of clutch "C" for wear and damage. Refer to => [ Clutch C ] Clutch C.

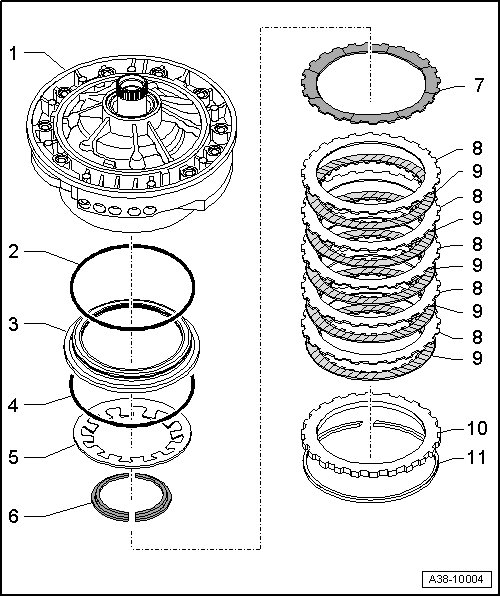

1 ATF pump

• Disassembling, refer to => [ ATF Pump Component Overview ] ATF Pump Component Overview

2 O-ring

• Replace

3 Piston "C"

4 O-ring

• Replace

5 Plate spring

6 Split retaining ring

7 Waved washer

8 Outer plates

9 Coated plates

10 Thick outer plate

11 Circlip

• Determining thickness => [ Adjust clutch air
gap ] Clutch C
