Transmission Identification

Transmission Identification

The 6 speed manual transmission 01X Front Wheel Drive (FWD) is installed on the A4 from Model Year (MY) 2001 in conjunction with 2.0 liter engines.

Location on Transmission





• Code letters and date of manufacture - arrow 1 - or - arrow 3 -

• Manual transmission 01X - arrow 2 -

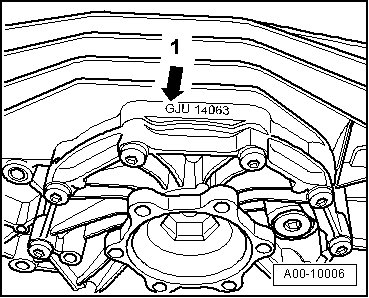

Code Letters and Date of Manufacture of Transmission - arrow 1 -









Additional data are production-related.

• The code letters for the transmission are also given on the vehicle data stickers.

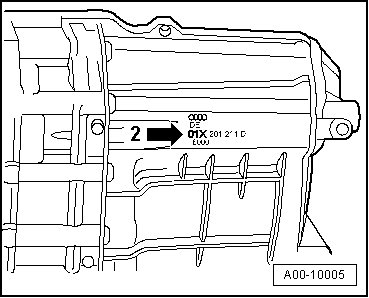

Manual Transmission 01X - arrow 2 -
