Final Drive Gear Set, Adjustment and Marking

Final drive gear set, adjustment and marking, 02X, 6-Speed Four-Wheel Drive M/T

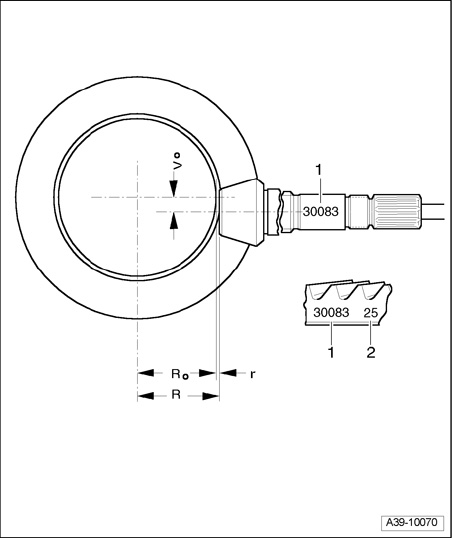

1 - "30083" number of matched pair of gears
In some cases identification number of matched pair only has four digits

2 - Deviation (tolerance) "r" is based on the master gauge used on the test machine in production. The dimension "r" is always given in 1/100mm. For example: "25" indicates r 0.25 mm

Ro - Length of test machine master gauge

Ro - Ring gear diameter 182 mm = 59.65 mm

R - Actual distance between ring gear axis and face of pinion shaft in position of quietest running for this gear set.

Vo - Hypoid offset
