Selector Mechanism Component Overview

Selector Mechanism Component Overview

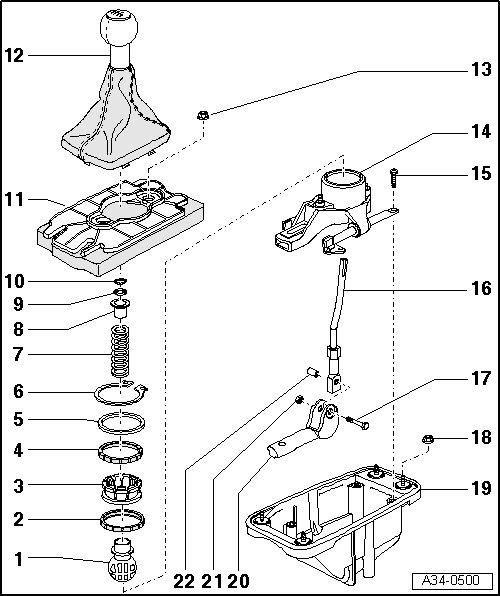

Part I

• Lubricate all bearings and moving surfaces with polycarbamide grease (G 052 142 A2).





1 Ball

2 Rubber ring

3 Ball guide

4 Rubber ring

5 Washer

• Lip points toward ball guide => [ (Item 3) Ball guide ]

6 Circlip

• Take out before removing ball

7 Spring

8 Spacer sleeve

9 Washer

10 Circlip

11 Sound insulation

• - Arrow - marked on sound insulation points in direction of travel.

12 Gear lever knob

• With cover.

• Removing and installing, refer to => [ Gear Lever Knob and Boot ] Gear Lever Knob and Boot.

13 Nut, 10 Nm

14 Ball housing

15 Torx socket head bolt

16 Gear lever

• Bend points towards rear.

17 Bolt

18 Nut, 10 Nm

19 Selector housing

20 Joint for gear lever/selector rod

21 Nut, 10 Nm

• Self locking.

• Replace.

22 Bushing

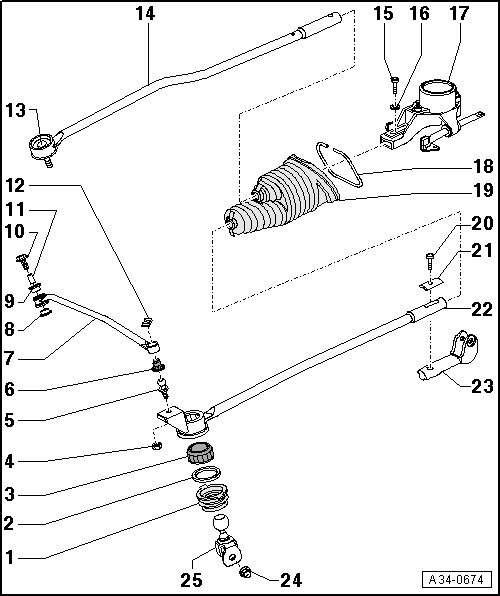

Part II

• Lubricate all bearings and moving surfaces with polycarbamide grease (G 052 142 A2).





1 Boot

• Secure to selector rod with commercially available instant adhesive.

2 Washer

3 Ball socket

• To remove, bend open peened points on selector rod => [ (Item 22) Selector rod ].

4 Cap nut, 23 Nm

5 Ball stud

6 Ball socket

• To remove pull off retaining clip => [ (Item 12) Retaining clip ].

7 Connecting rod

• To remove pull off retaining clip => [ (Item 12) Retaining clip ].

8 Bushing

9 Bushing

10 Bolt, 23 Nm

11 Sleeve

12 Retaining clip

13 Bolt, 40 Nm

14 Push rod

• With bushing, bolt and washers.

15 Hex socket head bolt, 23 Nm

16 Washer

17 Gear lever bearing

18 Clamping ring for boot

19 Boot

• To remove, carefully pull over selector rod => [ (Item 22) Selector rod ] and push rod => [ (Item 14) Push rod ].

• When installing, align with markings on selector rod => [ (Item 22) Selector rod ] and push rod => [ (Item 14) Push rod ].

20 Hex socket head bolt, 23 Nm

21 Clamp

22 Selector rod

23 Joint for gear lever/selector rod

24 Cap nut, 10 Nm

• Self-locking.

• Replace.

25 Selector shaft lever
