Navigation System With CD Drive Control Module

Navigation System with CD Drive Control Module

Special tools, testers and auxiliary items required

• Radio removal tool (T10057)

- Turn off all electrical components.

- Remove ignition key.

Removing

- Open left luggage compartment storage bin.

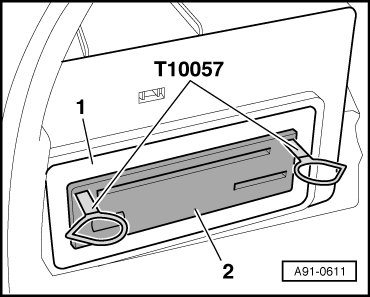

- Insert two clips on Radio Removal Tool (T10057 ) into release slits on Navigation System with CD Drive Control Module (J401) - 2 - until they engage. Points on grip eyes face outward.





- Remove Navigation System with CD Drive Control Module (J401) - 2 - from installation frame - 1 -.

- Disconnect connectors on Navigation System with CD Drive Control Module (J401) - 2 -.

- Remove Radio Release Tool (T10057) by pressing locking tabs on Navigation System with CD Drive Control Module (J401).

Installing

- Connect all harness connectors.

- Slide Navigation System with CD Drive Control Module (J401) in until it engages in mounting frame.

- If necessary, perform adaptations on Navigation System with CD Drive Control Module (J401).
