Flange/Driveshaft Seal

Flange/Driveshaft Seal

Special tools, testers and auxiliary items required

• Needle Bearing Drift (VW 295 A)

• Thrust Plate (VW 402)

• Punch (VW 408 A)

• Support Channels (VW 457)

• - 3 - Separating Device 22 to 75 mm, for example (Kukko 17/1)

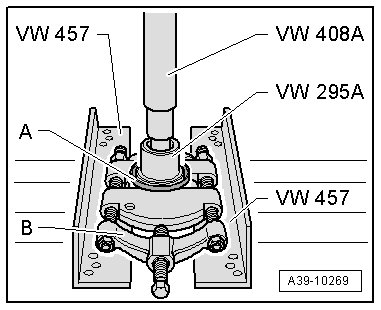

Press the Protective Ring - A - Off the Flange/Driveshaft.





B Separating device 12 to 75 mm, for example (Kukko 17/1)

Installation Location of the Protective Ring - A - on the Flange/Driveshaft





• Insert the protective ring - A - with the ridge - arrow 1 - in the groove - arrow 2 - on the flange - B -. The smaller outer diameter - arrow 3 - faces toward the flange.

Press the Protective Ring - A - onto the Flange/Driveshaft.





• The protective ring - A - must engage in the flange groove.
