Selector Mechanism, Through 11.2005

Selector Lever Sensor System Control Module with Tiptronic Switch

• Selector Lever Sensor System Control Module (J587) with Tiptronic Switch (F189) are combined in one component.

• Tiptronic Switch (F189) magnets are secured to cover.

Removing

- Remove selector lever handle => [ Selector Lever Handle ] Selector Lever Handle.

- Remove rear and front center console.

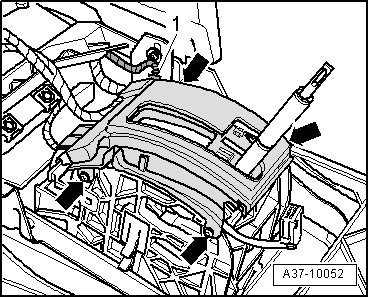

- Disconnect electrical connector - 1 -.





- Remove screws - arrows - and remove Selector Lever Sensor System Control Module (J587) with Tiptronic Switch (F189).

Installing

Install in reverse order, paying attention to the following:

- Install rear and front center console.

- Install selector lever handle => [ Selector Lever Handle ] Selector Lever Handle.

Tightening specification => [ Selector Mechanism Assembly Overview ] Description and Operation.
