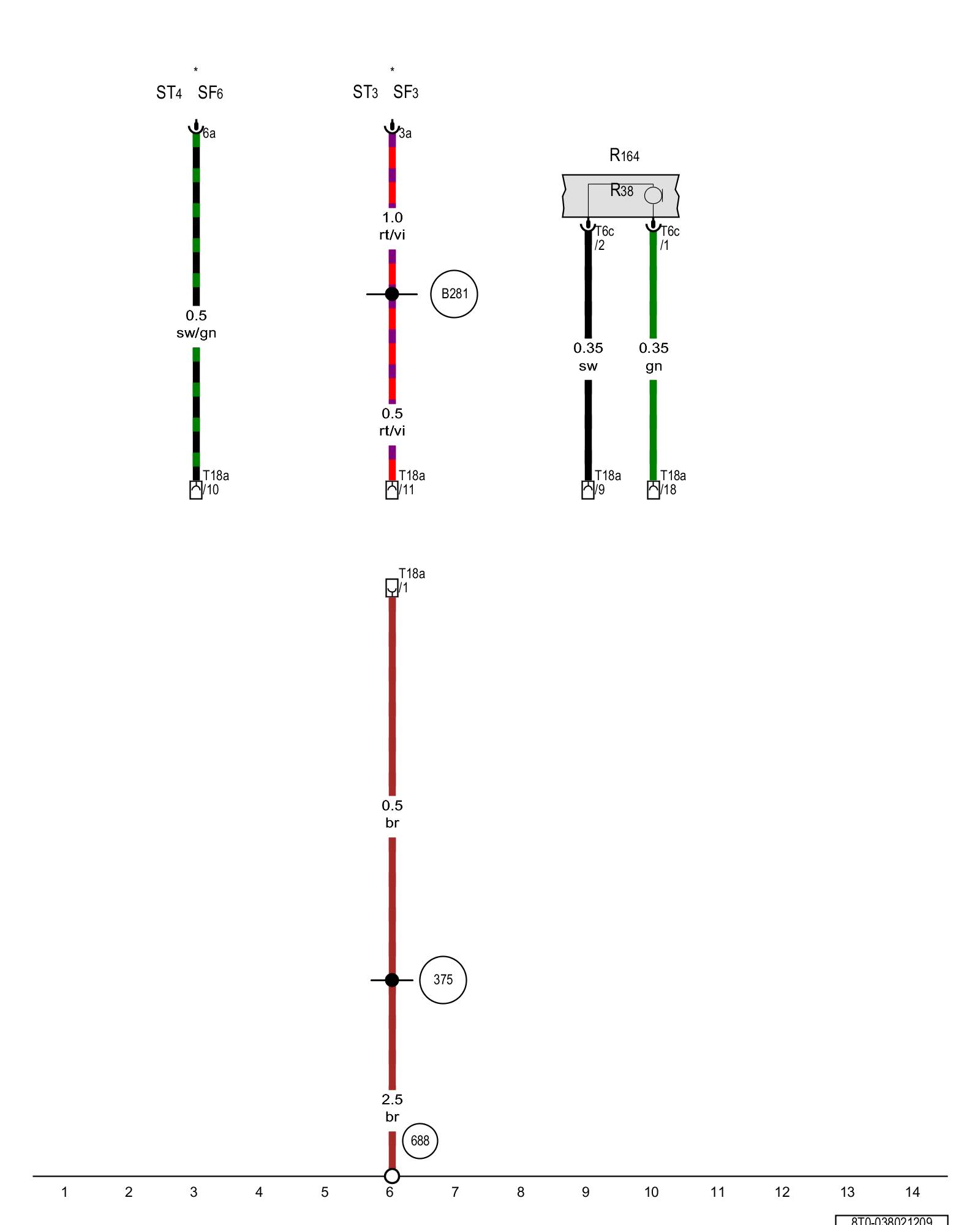

Diagram 38/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Microphone unit in front roof module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R38 - Telephone microphone Telephone/ Telematics Component Locations

R164 - Microphone unit in front roof module Radio / Sound System Component Locations

SF3 - Fuse 3 (on fuse panel F) Overview Of Fuses

ST3 - Fuse panel 3

ST4 - Fuse panel 4

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses

T6c - 6-pin connector

T18a - 18-pin connector, under the center console

(375) - Ground connection 10 (in main wiring harness)

(688) - Ground connection 2 on center tunnel Overview Of Ground Connections (2-door Models (Coupe))

(B281) - Positive connection 5 (15a) (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

Next Diagram 38/3 (Tracks 15-28)
